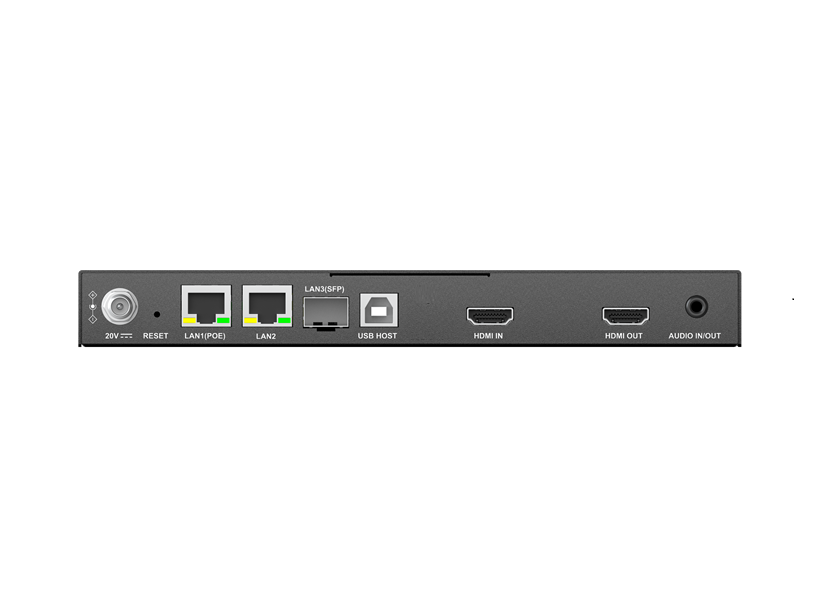

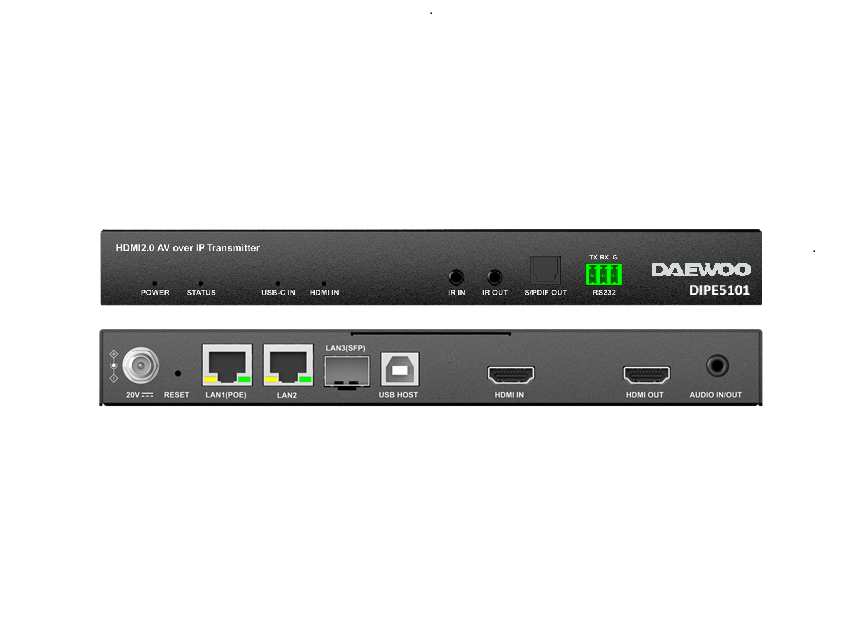

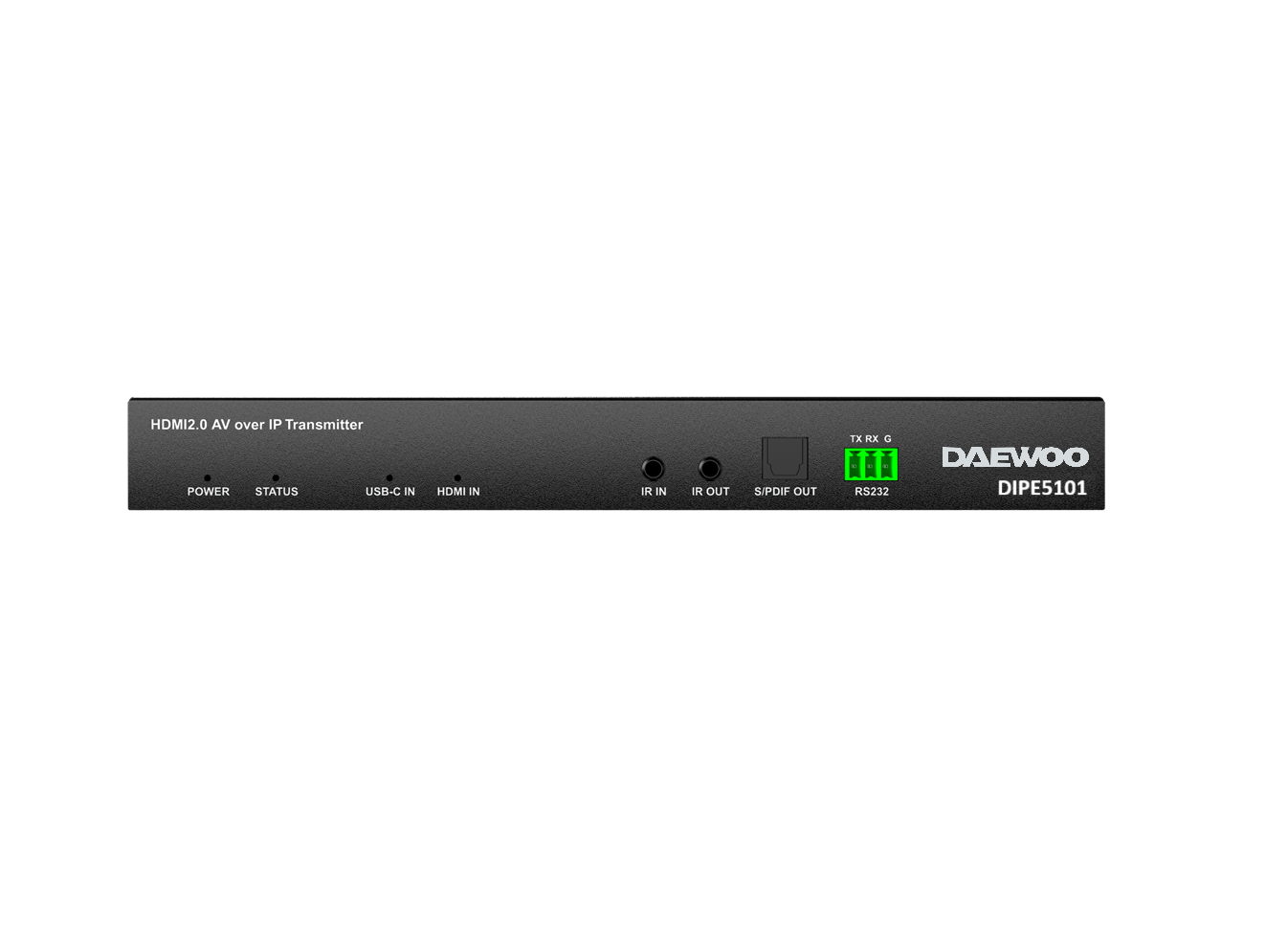

DIPE-5101

4K60 4:4:4 Encoder with HDMI Input

The DIPE-5101 series encoders are designed to work with DIPD-5100 series decoders for UHD media up to 3840 x 2160@60Hz 4:4:4 to be switched and distributed over standard Gigabit Ethernet networks, providing complete end- to-end streaming systems, where audio, video together with USB, RS232 and IR signals can be routed separately or as a whole. Equipped with Dante technology, they realize perfect interconnectivity and interoperability with Dante audio systems.

Enquiry

Tech Specification

MODEL DIPE-5101
Input Video Port 1 x HDMI Type A (19 pins)
Input Video Type HDMI 2.0, HDCP 2.2/2.3
Input Resolutions 3840 x 2160p@24/25/30/50/60Hz 4:4:4,
1920 x 1200@50/60Hz, 2400x1350p@60Hz,
1920 x 1080p@24/25/30/50/60/100/120Hz,
1920 x 1080i@50/60Hz, 1680 x 1050@60Hz,
1600 x 1200@60Hz, 1600 x 900@60Hz,
1400 x 1050@60Hz, 1440 x 900@60Hz,
1366 x 768@60Hz, 1360 x 768@60Hz,
1280 x 1024@60Hz, 1280 x 960@60Hz,
1280 x 800@60Hz, 1280 x 768@60Hz,
1280 x 720p@60/100/120Hz, 1024 x 768@60Hz,
800 x 600@60Hz, 720 x 576p@50Hz,
720 x 480p@60Hz, 640 x 480p@60Hz
Output Video Port 2 x RJ-45; 1 x Optical; 1 x HDMI Type A (19 pins)
Output Video Type IP Stream; HDMI 2.0, HDCP 2.2/2.3
Output Resolutions Up to 3840 x 2160p@60Hz 4:4:4
Average Encoding Data Rate 3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max)
Input/Output Video Signal 0.5~1.2 V p-p
Input/Output DDC Signal 5 V p-p (TTL)
Video Impendence 100 Ω
Maximum Data Rate 18 Gbps (6 Gbps per color)
Maximum Pixel Clock 600 MHz
Input Audio Port 1 x HDMI Type-A; 1 x 3.5mm stereo jack (configurable)
Input Audio Signal Ÿ  HDMI Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1,
Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Ÿ  AUDIO IN: Analog
Output Audio Port 2 x RJ-45; 1 x Optical; 1 x HDMI; 1 x S/PDIF Out; 1 x
3.5mm stereo jack (configurable)
Output Audio Signal Ÿ  LAN/HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Ÿ  S/PDIF Out: Digital audio
Ÿ  AUDIO OUT: Analog
Dante Audio Type LPCM 2.0, 44.1/48/88.2/96 KHz
Control Method Telnet API, IP Controller
Operating Temperature/ 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing
Humidity
Storage Temperature/ Humidity -4°F ~ 158°F (-20°C ~ 70°C), 10% ~ 90%, non-condensing
Power 20V DC 6A; PoE
Power Consumption (Max) 73W (with 60W charging included)
ESD Protection Human body model:
±8kV (air-gap discharge) / ±4kV (contact discharge)
Dimensions (W x H x D) 8.46'' x 0.98'' x 6.30'' (215 mm x 25 mm x 160 mm)
Net Weight 2.22lbs (1.01kg)
