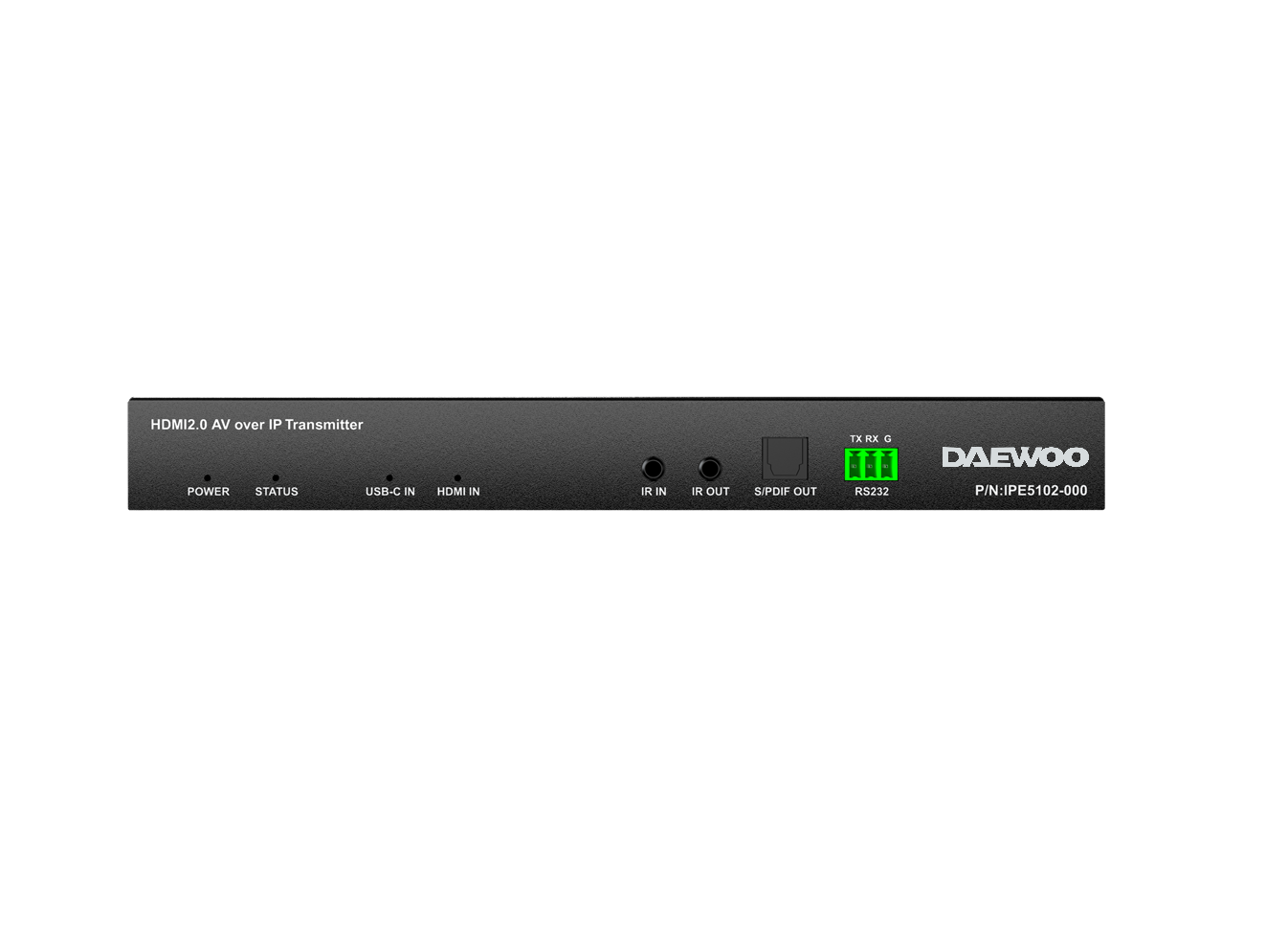

DIPE-5102

4K60 4:4:4 Encoder with HDMI & USB-C Inputs

The DIPE-5102 series encoders are designed to work with DIPD-5100 series decoders for UHD media up to 3840 x 2160@60Hz 4:4:4 to be switched and distributed over standard Gigabit Ethernet networks, providing complete end- to-end streaming systems, where audio, video together with USB, RS232 and IR signals can be routed separately or as a whole. Equipped with Dante technology, they realize perfect interconnectivity and interoperability with Dante audio systems.

Datasheet Instruction Manual Enquiry

Features

Video Features

   Includes one HDMI and one USB-C inputs with support of flexible input switching modes: Auto, Manual and Priority.

   Supports input and output resolutions up to 3840 x 2160@60Hz 4:4:4.

   Supports HDR10 and Dolby Vision.

   Supports CEC.

   HDCP 2.2/2.3 compliant.

   Flexible routing policies, allowing audio, video, USB, RS232 and IR signals to be routed separately or as a whole throughout the matrix system.

Audio Features

   Supports multi-channel audio up to PCM 7.1, Dolby Atmos, DTS HD Master and DTS:X

   Configurable audio input/output direction.

   HDMI eARC audio return.

   Built-in triple Ethernet ports, any one of which can be used for transmission of A/V streams, control data and Dante audio streams.

 Supports 2 x 2 Dante audio transmission if Dante licensed (default setting is Dante unlicensed).

Ethernet & Control Features

   Delivers audio, video, USB, RS232, IR and power signals up to 328ft/100m over a single Cat 5e cable or above.

   Supports bidirectional serial communication.

   Supports IR pass-through for controlling of remote source and display devices between encoders and decoders.

 Supports IR generation: IR codes can be sent through API.

 Supports point-to-point, point-to-multipoint, multipoint-to-point, multipoint- to-multipoint applications.

 Supports PoE to be remotely powered by compatible power source equipment such as a PoE-enabled Ethernet switch, eliminating the need for a nearby power outlet.

 Supports DHCP by default, and will fall back to AutoIP if there’s no DHCP server in the system.

 Controlled by Telnet API and IP controller.

 Supports communications protocols of Telnet, SSH, HTTP, and HTTPS.

Tech Specification

MODEL DIPE-5102

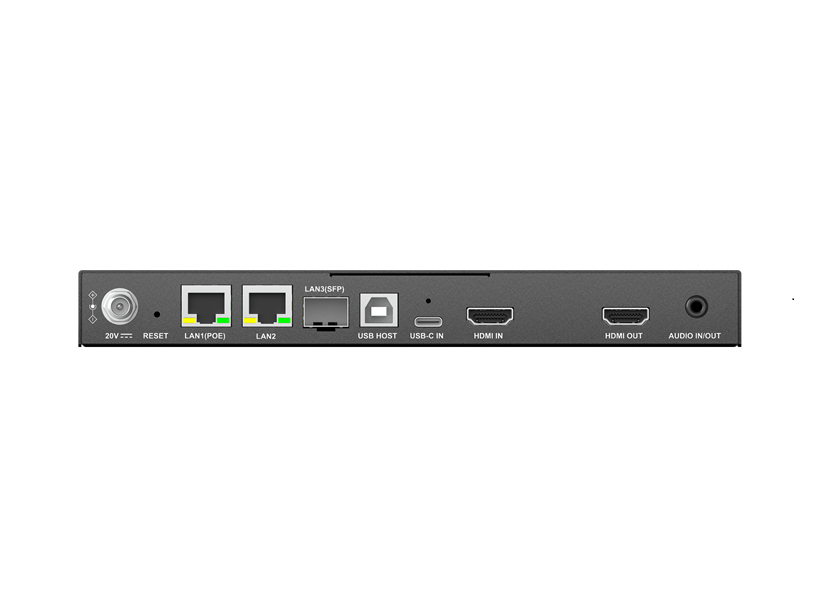

Input Video Port 1 x USB-C; 1 x HDMI Type A (19 pins)
Input Video Type HDMI 2.0, HDCP 2.2/2.3
Input Resolutions 3840 x 2160p@24/25/30/50/60Hz 4:4:4,
1920 x 1200@50/60Hz, 2400x1350p@60Hz,
1920 x 1080p@24/25/30/50/60/100/120Hz,
1920 x 1080i@50/60Hz, 1680 x 1050@60Hz,
1600 x 1200@60Hz, 1600 x 900@60Hz,
1400 x 1050@60Hz, 1440 x 900@60Hz,
1366 x 768@60Hz, 1360 x 768@60Hz,
1280 x 1024@60Hz, 1280 x 960@60Hz,
1280 x 800@60Hz, 1280 x 768@60Hz,
1280 x 720p@60/100/120Hz, 1024 x 768@60Hz,
800 x 600@60Hz, 720 x 576p@50Hz,
720 x 480p@60Hz, 640 x 480p@60Hz
Output Video Port 2 x RJ-45; 1 x Optical; 1 x HDMI Type A (19 pins)
Output Video Type IP Stream; HDMI 2.0, HDCP 2.2/2.3
Output Resolutions Up to 3840 x 2160p@60Hz 4:4:4
Average Encoding Data Rate 3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max)
Input/Output Video Signal 0.5~1.2 V p-p
Input/Output DDC Signal 5 V p-p (TTL)
Video Impendence 100 Ω
Maximum Data Rate 18 Gbps (6 Gbps per color)
Maximum Pixel Clock 600 MHz
Input Audio Port 1 x USB-C; 1 x HDMI Type-A; 1 x 3.5mm stereo jack (configurable)
Input Audio Signal Ÿ  HDMI/USB-C IN: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1,
Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Ÿ  AUDIO IN: Analog
Output Audio Port 2 x RJ-45; 1 x Optical; 1 x HDMI; 1 x S/PDIF Out; 1 x
3.5mm stereo jack (configurable)
Output Audio Signal Ÿ  LAN/HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Ÿ  S/PDIF Out: Digital audio
Ÿ  AUDIO OUT: Analog
Dante Audio Type LPCM 2.0, 44.1/48/88.2/96 KHz
Control Method Telnet API, IP Controller
Operating Temperature/ 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing
Humidity
Storage Temperature/ Humidity -4°F ~ 158°F (-20°C ~ 70°C), 10% ~ 90%, non-condensing
Power 20V DC 6A; PoE
Power Consumption (Max) 73W (with 60W charging included)
ESD Protection Human body model:
±8kV (air-gap discharge) / ±4kV (contact discharge)
Dimensions (W x H x D) 8.46'' x 0.98'' x 6.30'' (215 mm x 25 mm x 160 mm)
Net Weight 2.22lbs (1.01kg)
