DAS-2CHD-BT

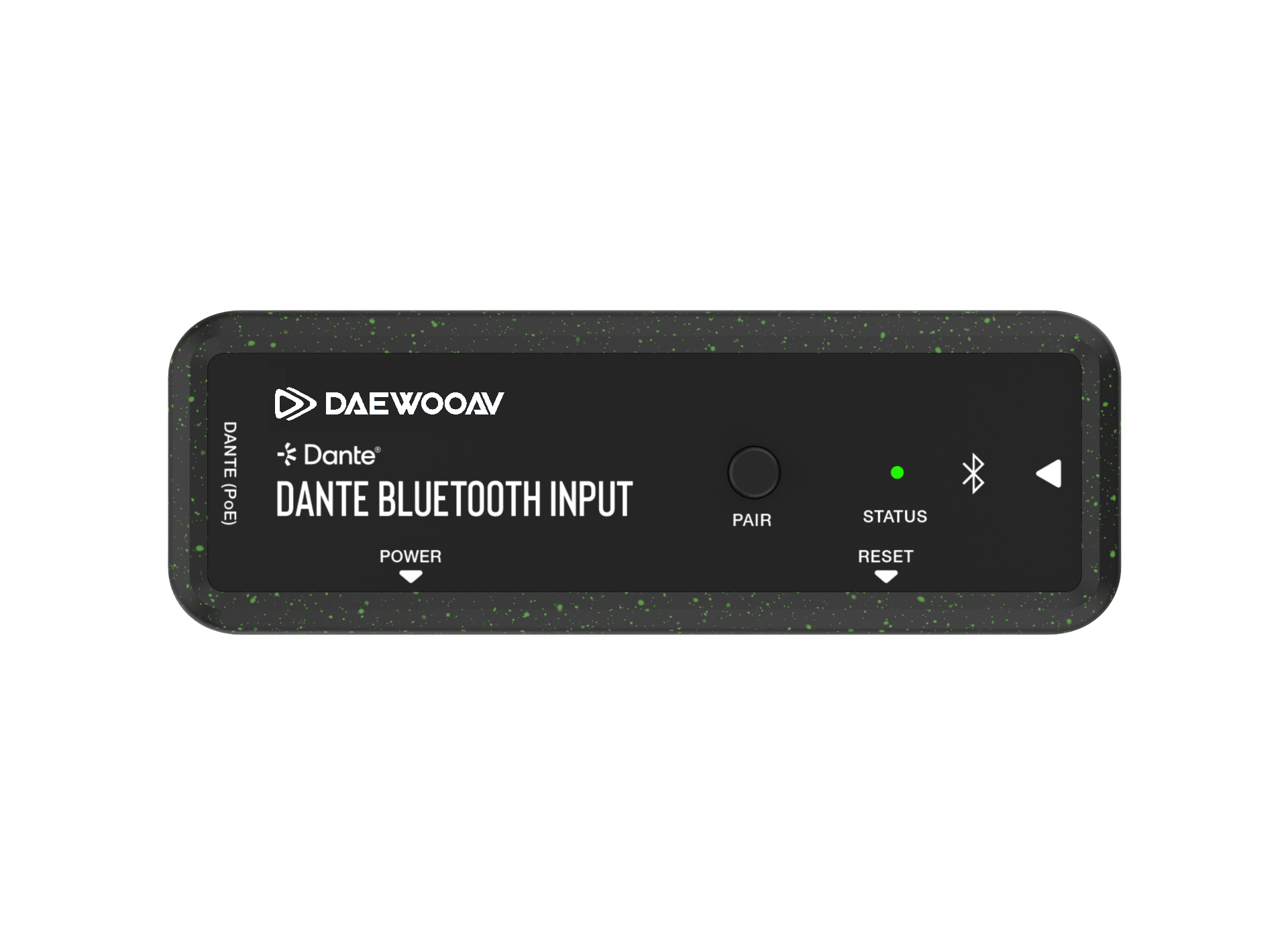

Dante® 2CH Bluetooth Input Adapter
Two-channel Bluetooth audio to Dante 2CH digital audio, Supports Bluetooth V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 24bit/192KHz
Two-channel Bluetooth audio to Dante 2CH digital audio, Supports Bluetooth V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 24bit/192KHz
This adapter enables seamless conversion from two-channel Bluetooth audio to Dante 2CH digital audio, supporting Bluetooth V5.1 with SBC, AAC, APTX, APTX-LL, and APTX-HD codecs for high-fidelity audio up to 24-bit/192kHz.

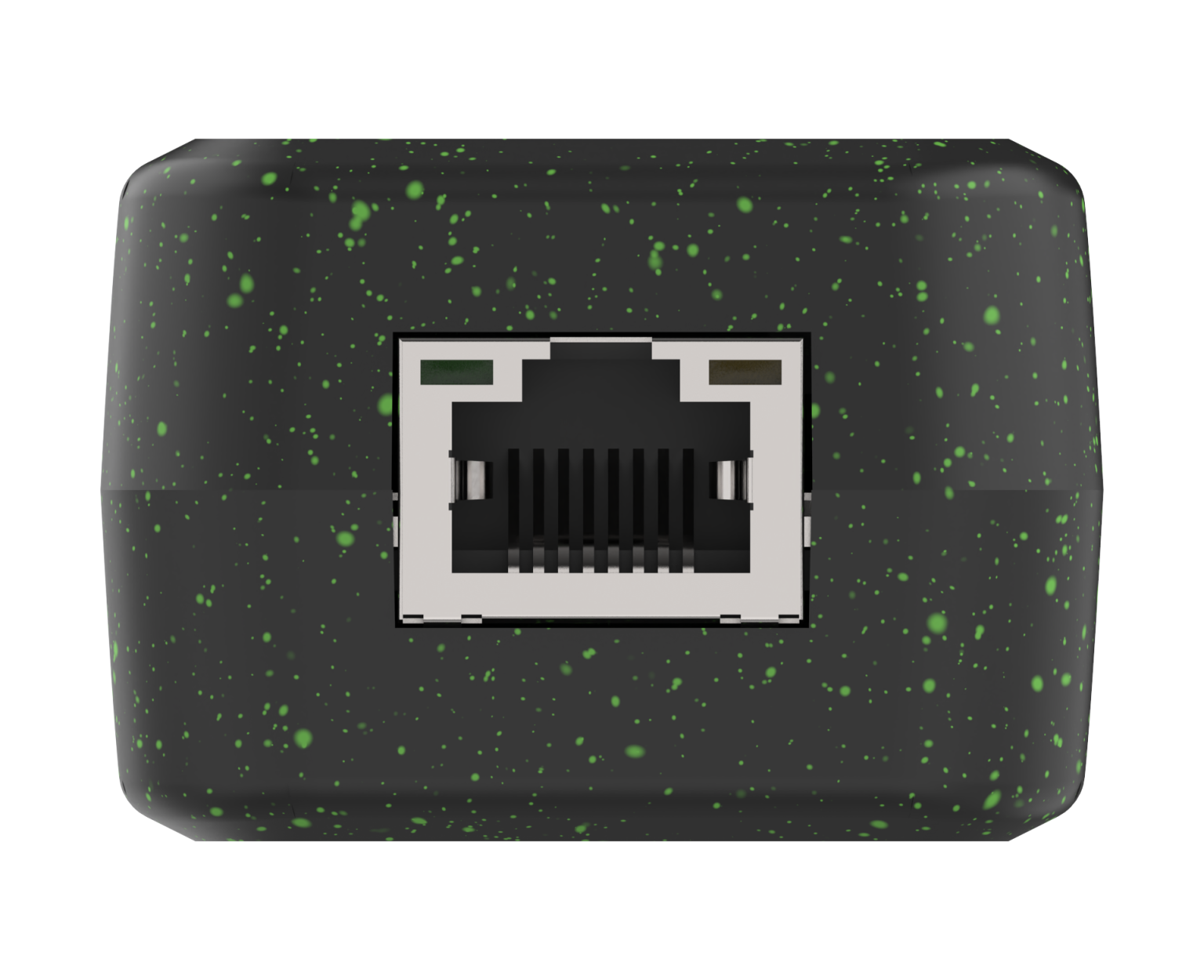

The Dante audio output is sampled at 24-bit/48kHz, ensuring exceptional sound quality. With configurable Dante audio delay options of 1, 2, or 5 milliseconds, this adapter delivers precise, low-latency performance. Powered via PoE or USB-C, it offers flexible power solutions for any professional audio setup.

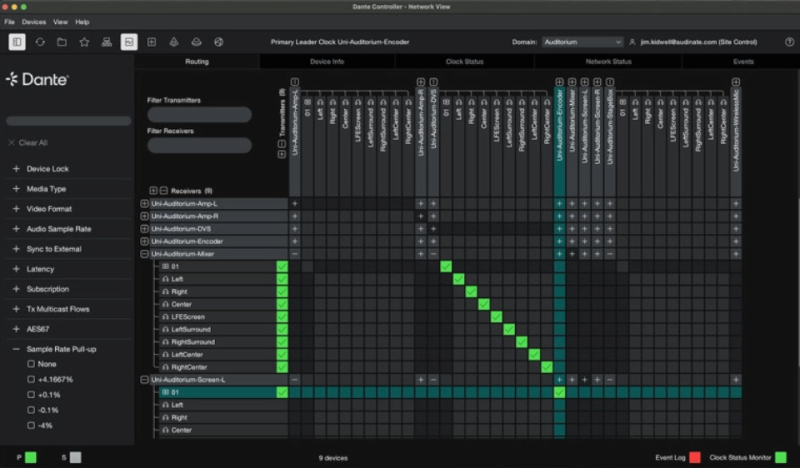

Take command with Dante Controller. Our adapters are fully controllable through this intuitive and standard platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.
| MODEL | DAS-2CHD-BT |
| Input | Two-channel Bluetooth audio |
| Output | Dante® 2CH digital audio |
| Bluetooth | V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 192KHz@24bit |
| Control | Dante® Controller |
| Network Bandwidth | 100M |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Audio Formats | Bluetooth IN [Digital audio input, PCM 2CH 44.1K-192KHz 16/24bit] |
| DANTE OUT [Digital audio output, PCM 2CH 48KHz 16/ 24bit] | |
| Audio Parameters | Frequency Response: 20Hz to 20kHz (-/+0.5dB) |
| Dynamic Range: 100dB@0dBu, 1kHzA-weighted | |
| Audio S/N Ratio: 100dB@0dBu, 1kHzA-weighted | |
| Audio THD+N: 0.01% at +4dBu, 1KHz | |
| Audio Output Sync Delay: 10ms | |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Dimensions (mm) WxDxH | 115 x 40 x 28 |
| Weight | 94g |
