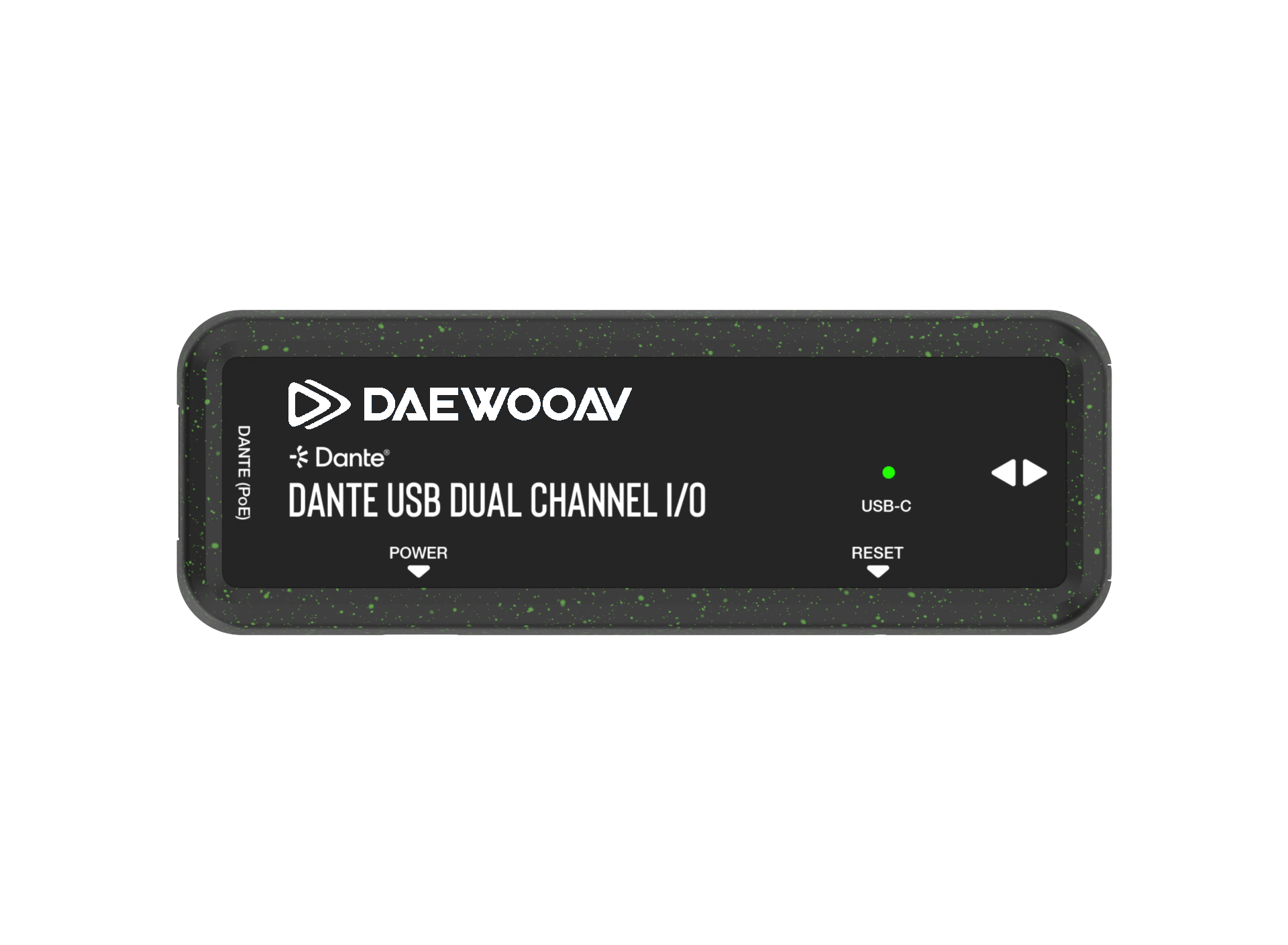

Dante® Bi-directional conversion for two-channel USB audio and utilising the advanced Dante® Digital Audio. This versatile adapter is USB audio device class 1.0/2.0 compatible, supporting USB output up to 24bit/192KHz and input up to 24bit/96KHz. With Dante audio sampling rates of 24bit at 44.1, 48, 88.2, and 96KHz, it delivers exceptional audio quality
Experience flawless bi-directional conversion between two-channel USB audio and Dante 2CH digital audio. This versatile adapter is USB audio device class 1.0/2.0 compatible, supporting USB output up to 24bit/192KHz and input up to 24bit/96KHz.

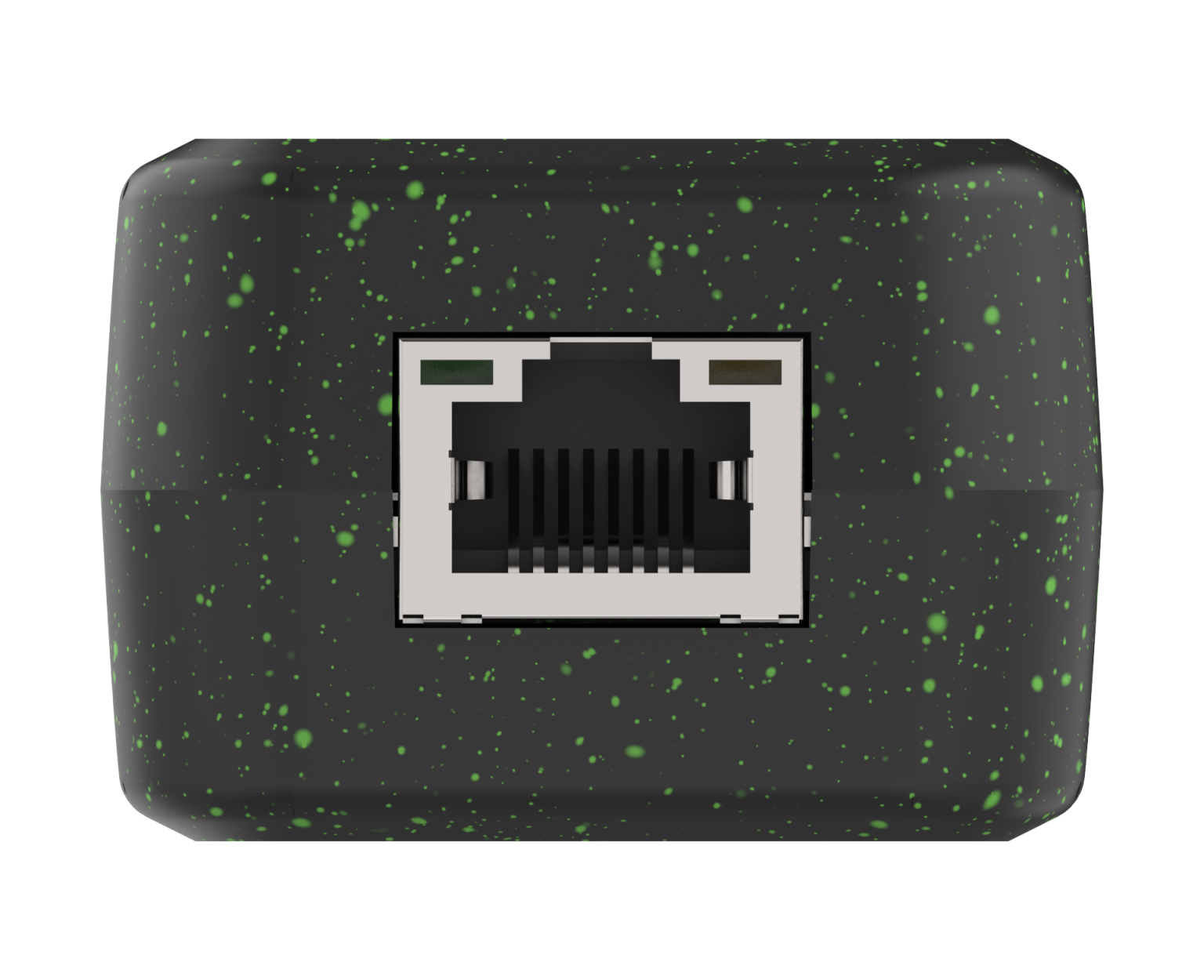

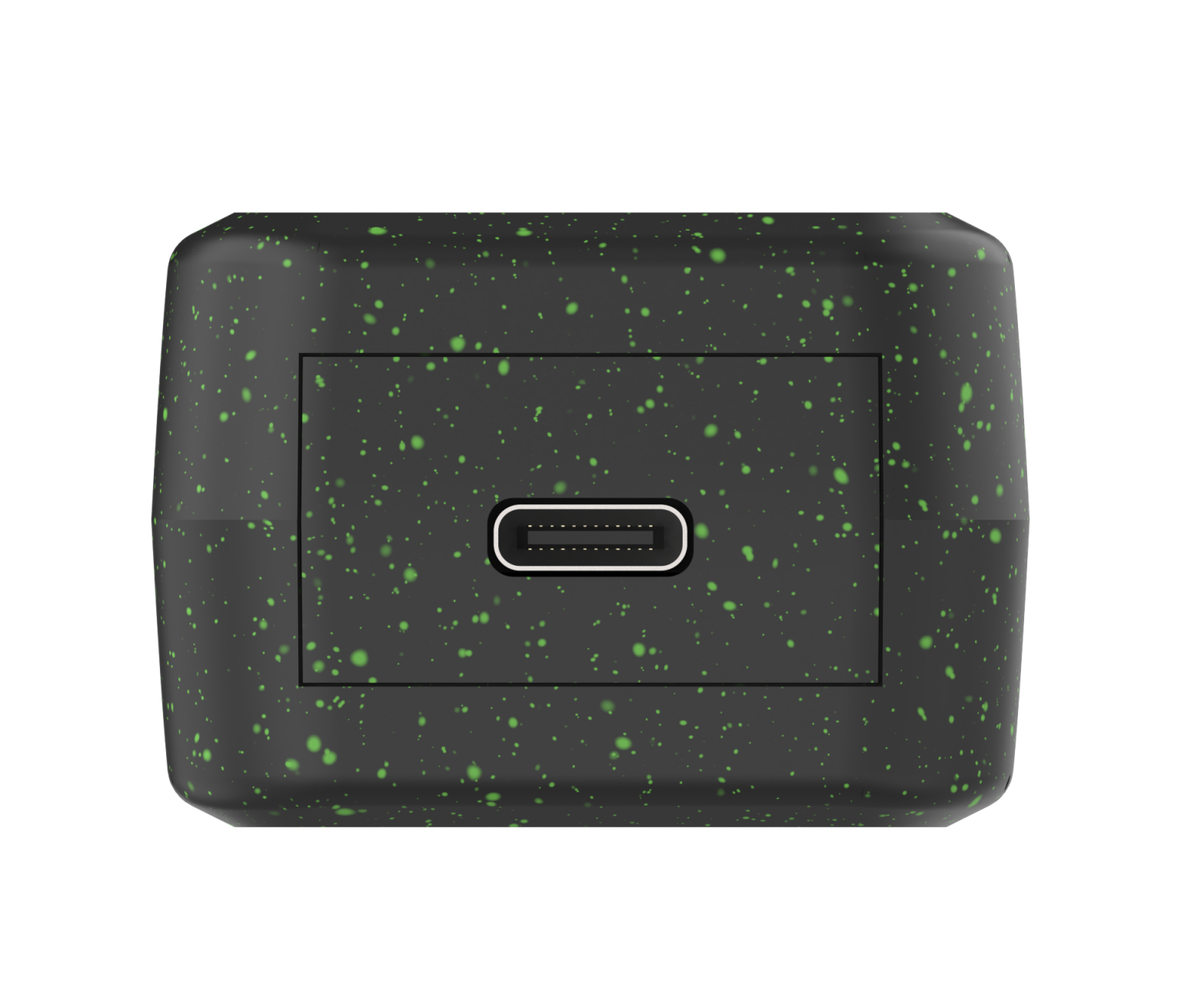

With Dante audio sampling rates of 24bit at 44.1, 48, 88.2, and 96KHz, it delivers exceptional audio quality. The configurable Dante audio delay (1, 2, or 5 milliseconds) ensures precision in any setup. Power by PoE or USB-C, for maximum powering flexibility.

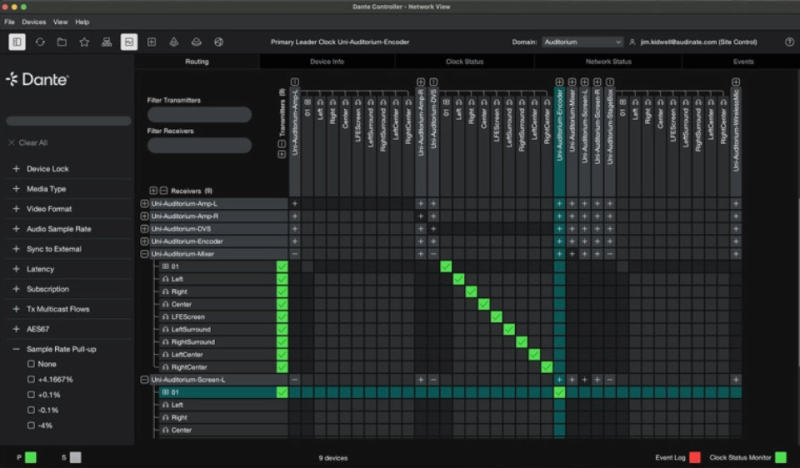

Take command with Dante Controller. Our adapters are fully controllable through this intuitive and standard platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.
| Model | DAS-2CHD-USB |
| Input/Output | Interconverts between two-channel USB audio and Dante® 2CH digital audio |
| USB Audio Class | 1.0/2.0-compatible |
| USB Audio Output | up to 192KHz@24bit |
| USB Audio Input | up to 96KHz@24bit |
| Control | Dante® Controller |
| Network Bandwidth | 100M |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Audio Formats | USB IN [Digital audio input, PCM 2CH 44.1K- 96KHz 16/24bit] |
| USB AUDIO OUT [Digital audio output, PCM 2CH 44.1K-192KHz 16/24bit] | |
| DANTE IN/OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit] | |
| Audio Parameters | USB IN |
| Frequency Response: 20Hz to 20kHz (-/+0.5dB) | |
| Dynamic Range: 100dB@0dBu, 1kHzA-weighted | |
| Audio S/N Ratio: 100dB@0dBu, 1kHzA-weighted | |
| Audio THD+N: 0.01% at +4dBu, 1KHz | |
| Audio Output Sync Delay: 10ms | |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Dimensions (mm) WxDxH | 115 x 40 x 28 |
| Weight | 94g |
