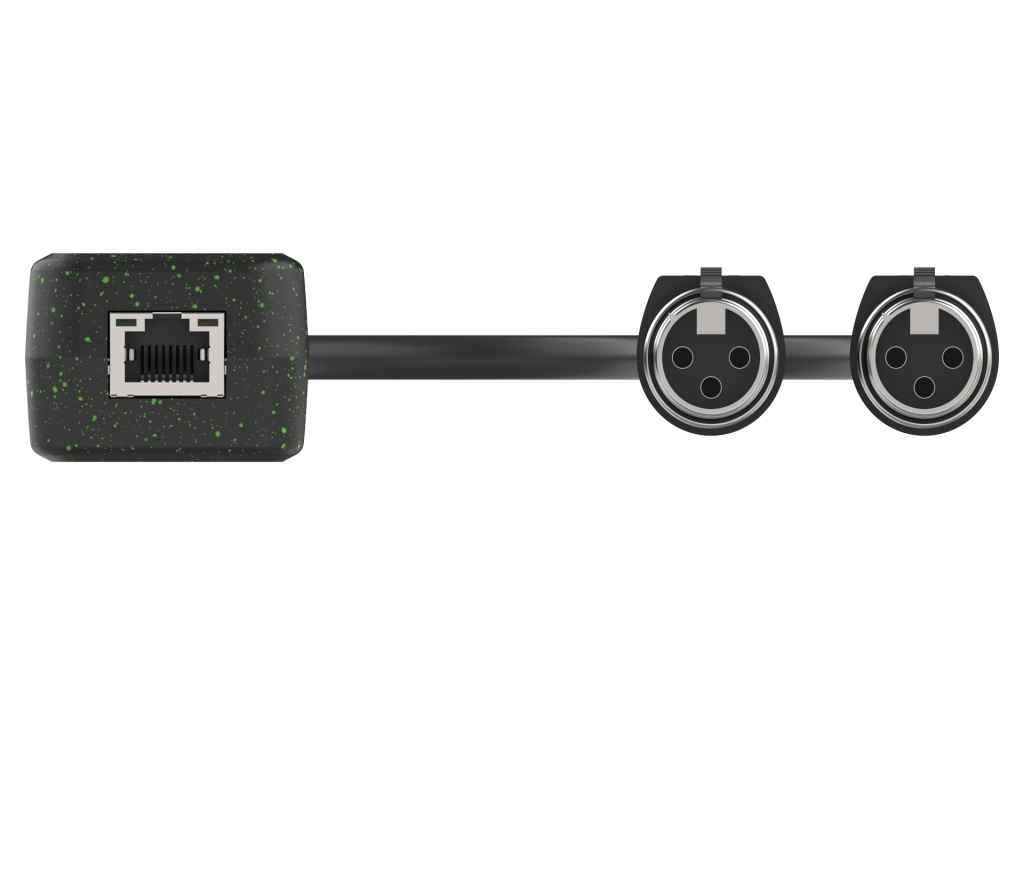

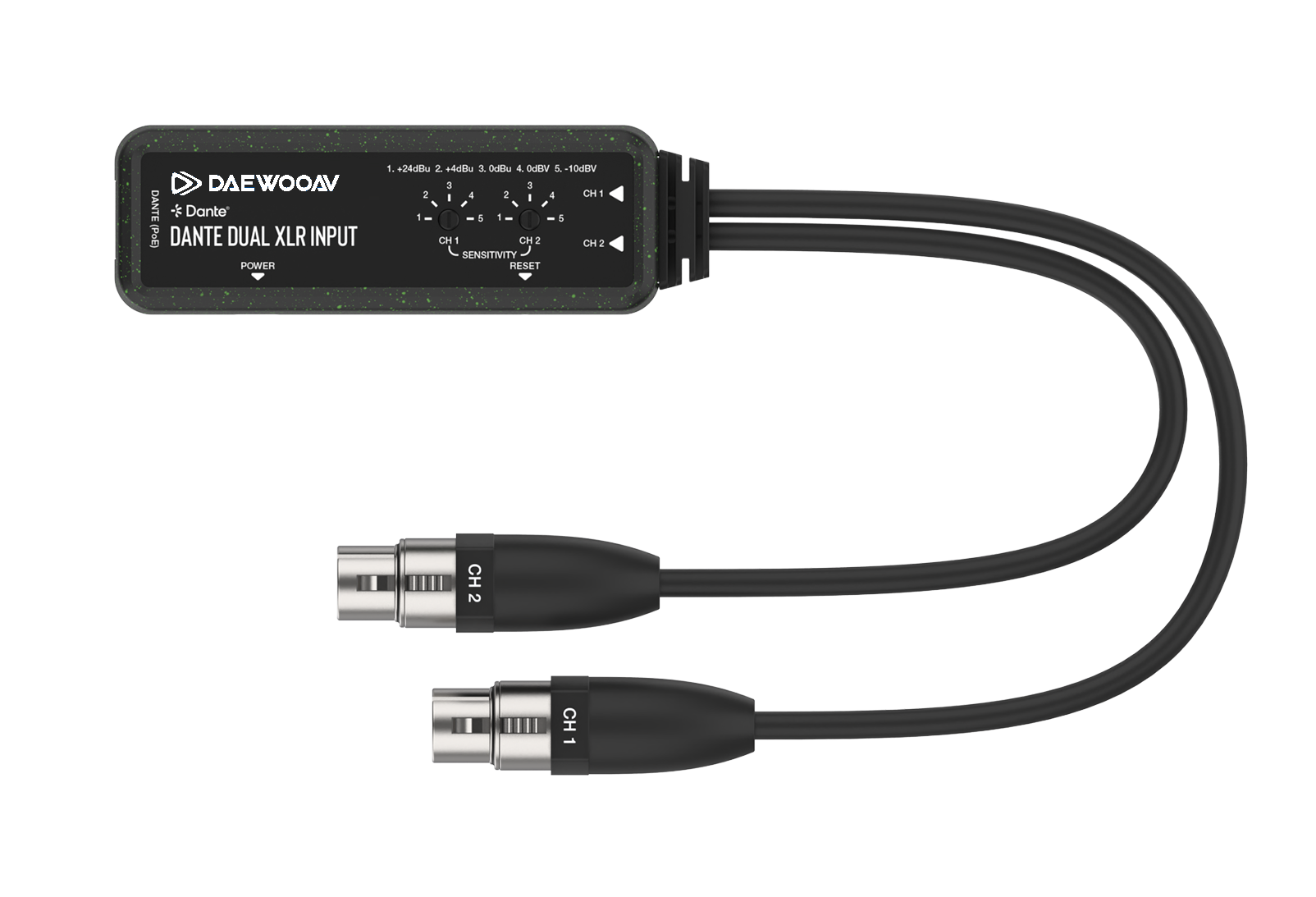

Dante® 2CH Analog XLR Input Adapter utilising the advanced Dante® 2×2 technology, this adapter seamlessly transforms two-channel balanced or unbalanced analog XLR signals into high-quality Dante® Digital Audio.
Unlock the power of digital audio with the two-channel XLR analog audio to Dante 2CH digital audio. Built on the cutting-edge Dante 2x2 solution, this adapter converts two-channel balanced or unbalanced analog XLR to crystal-clear Dante digital audio.

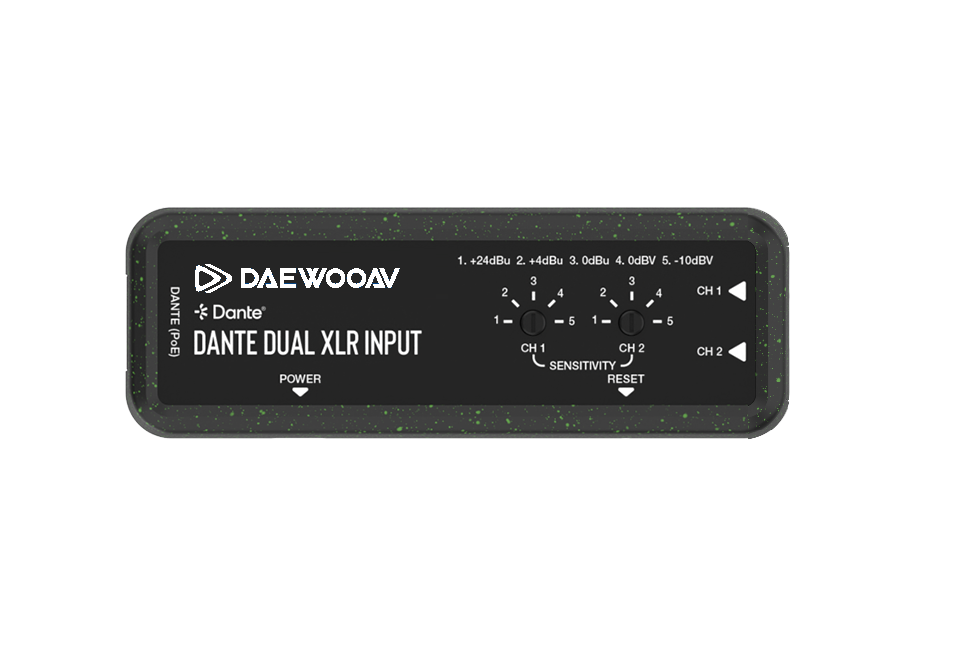

With 5-level sensitivity adjustment for analog outputs, you can tailor your sound with ease. Additionally, the adapter is powered via USB-C or PoE, ensuring flexible and convenient power options. Perfect for professional-grade audio integrations that demand the best.

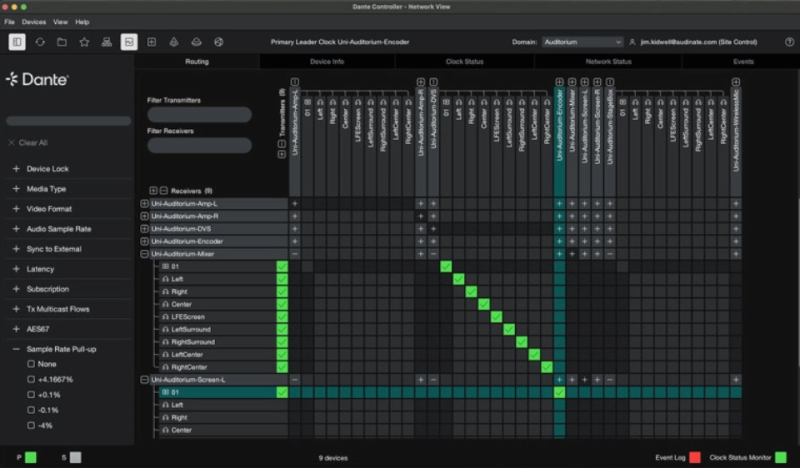

Take command with Dante Controller. Our adapters are fully controllable through this intuitive and standard platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.
| Model | DAS-2CHD-IN |
| Input | Two-channel balanced/unbalanced analog XLR audio |
| Output | Dante® 2CH digital audio |
| Control | Dante® Controller |
| Network Bandwidth | 100M |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Audio Formats | XLR IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu] |
| DANTE OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit] | |
| Audio Parameters | LINE IN |
| Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced | |
| Line Input Level (Maximum): +24dBu (12.28Vrms) @balanced audio, +18dBu (6.15Vrms) @unbalanced audio | |
| Frequency Response: 20Hz to 20kHz (-/+0.5dB) | |
| Dynamic Range: 100dB@0dBu, 1kHzA-weighted | |
| Audio S/N Ratio: 100dB@0dBu, 1kHzA-weighted | |
| Audio THD+N: 0.01% at +4dBu, 1KHz | |
| Audio Output Sync Delay: 10ms | |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Dimensions (mm) WxDxH | 115 x 40 x 28 |
| Weight | 173g |
