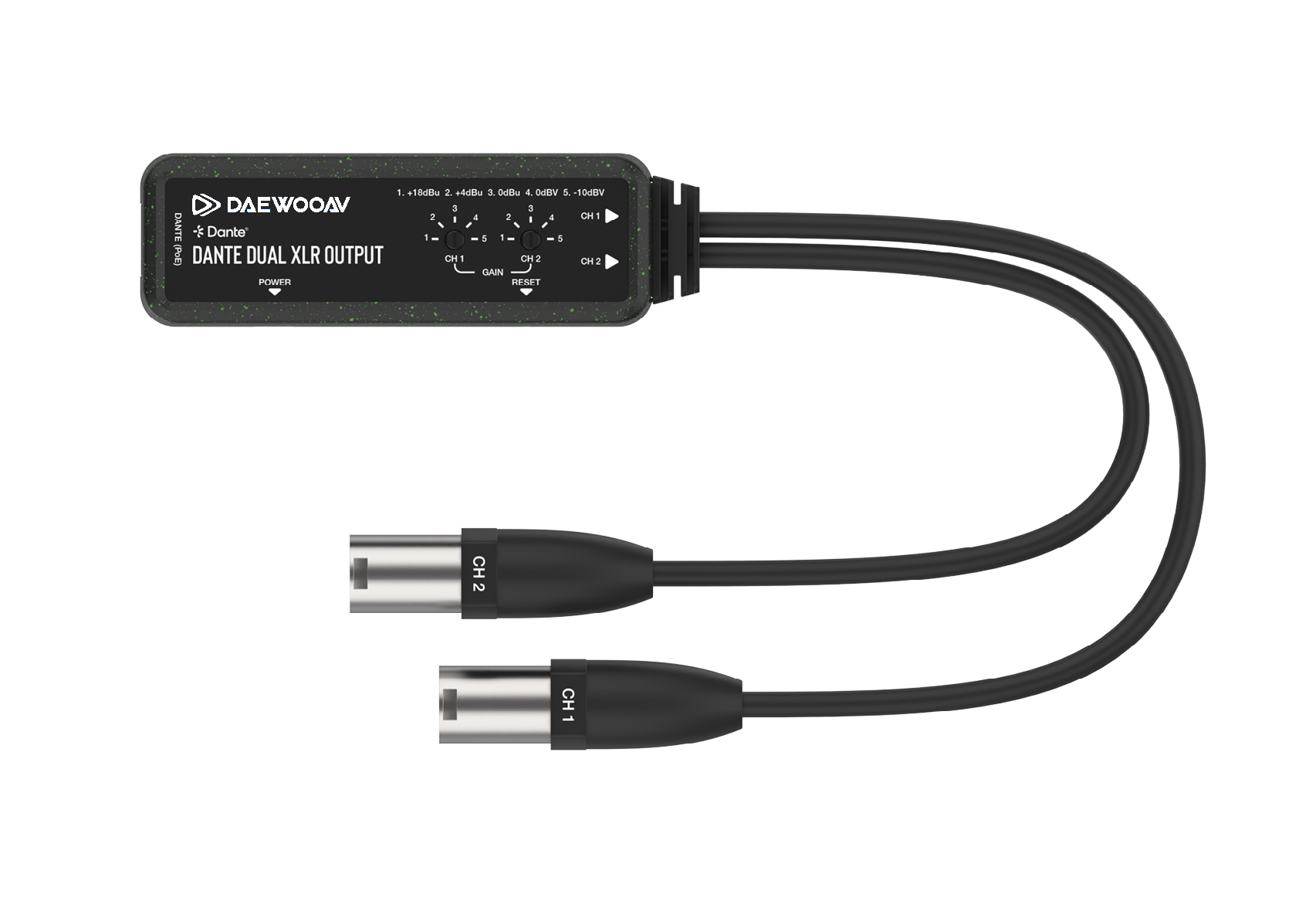

Dante® 2CH Digital-to-analog adapter, designed to deliver two channels XLR analog output. Leveraging the advanced Dante® 2×2 platform, this adapter seamlessly converts Dante® digital audio into balanced or unbalanced two-channel XLR analog signals.
Unlock the power of digital audio with the Dante 2CH digital audio to two-channel XLR analog audio. Built on the cutting-edge Dante 2x2 solution, this adapter converts crystal-clear Dante digital audio into two-channel balanced or unbalanced analog XLR.

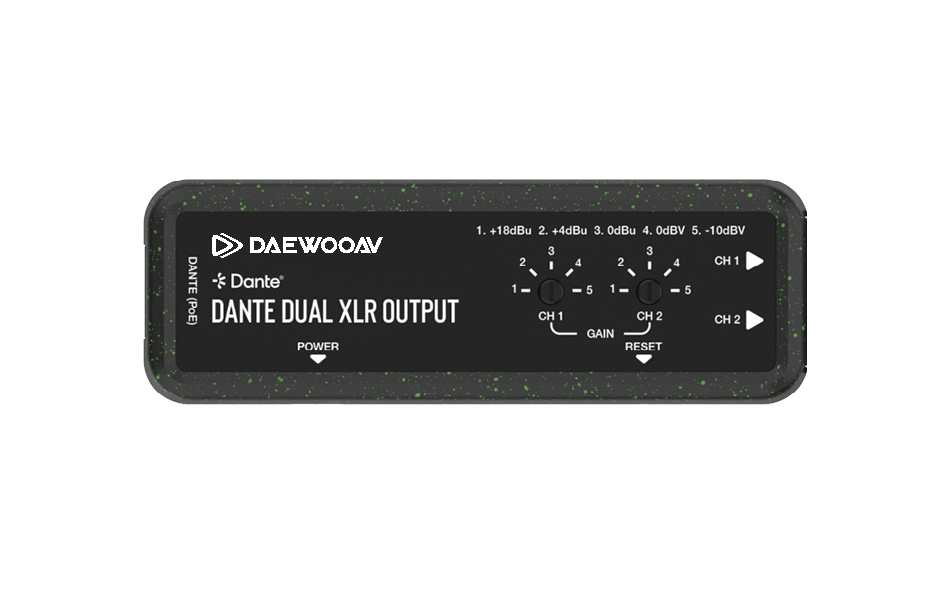

With 5-level sensitivity adjustment for analog outputs, you can tailor your sound with ease. Additionally, the adapter is powered via USB-C or PoE, ensuring flexible and convenient power options. Perfect for professional-grade audio integrations that demand the best.

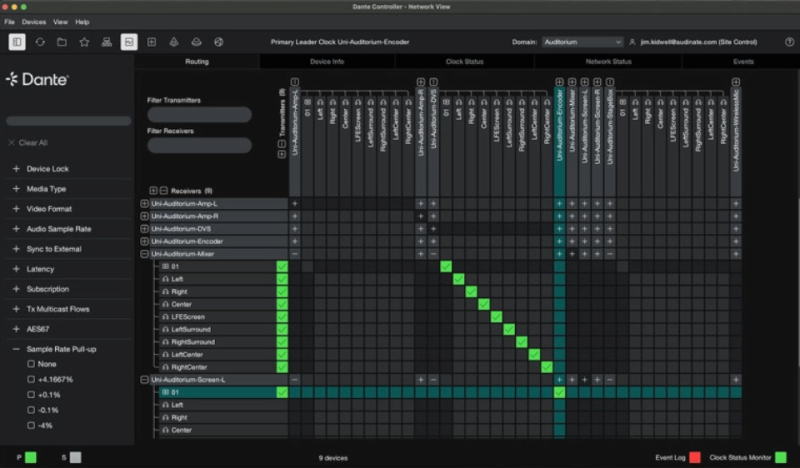

Take command with Dante Controller. Our adapters are fully controllable through this intuitive and standard platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.
| Model | DAS-2CHD-OUT |
| Input | Dante® 2CH digital audio |
| Output | Two-channel balanced/unbalanced XLR analog audio |
| Control | Dante® Controller |
| Network Bandwidth | 100M |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Audio Formats | DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit] |
| XLR OUT [Analog audio output, Balanced/unbalanced 2CH, Max output level +18dBu] | |
| Audio Parameters | XLR OUT |
| Output Impedance: 600 Ohm balanced, 300 Ohm unbalanced | |
| Line Output Level (Maximum): +18dBu (6.15Vrms) @balanced audio, +12dBu (3.08Vrms) @unbalanced audio | |
| Frequency Response: 20Hz to 20kHz (-/+0.5dB) | |
| Dynamic Range: 100dB@0dBu, 1kHzA-weighted | |
| Audio S/N Ratio: 100dB@0dBu, 1kHzA-weighted | |
| Audio THD+N: 0.01% at +4dBu, 1KHz | |
| Audio Output Sync Delay: 10ms | |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Dimensions (mm) WxDxH | 115 x 40 x 28 |
| Weight | 173g |
