DUCS-0402PD

4x2 Conferencing Presentation Switcher with USB-C and Dante Audio

The DUCS-0402PD is a conferencing presentation switcher, specially designed for conference room scenarios, featuring 4x2 matrix switching and optional long-distance video, audio, and USB transmission via HDBastT 3.0 technology. Equipped with dual USB-C full-featured and dual HDMI+USB 3.0 inputs, full-featured USB-C inputs, supports 4K video, USB 3.2 data, 1Gbps ethernet over USB and 60W charging with automatic switching, which supports 4 x USB 3.0 device ports, enabling connection to various conferencing peripherals such as USB Cameras, Conferencing Video-bars, and USB Microphone & speakers, and can extend USB connectivity over long distances via HDBaseT Receiver.

Datasheet Enquiry

Features

Elevate your Conferencing experience

  • 4x2 conference presentation switch, integrating video, audio, USB, control and ethernet.
  • Dual USB-C and dual HDMI + USB 3.2 inputs, and all ports support cable lock connections.
  • Full-featured USB-C inputs, supports 4K video, USB 3.2 data, USB ethernet and 60W charging.
  • One USB-C input supports MST for dual-screen conferencing applications.
  • Supports automatic switching, USB and video independent switching, priority switching, and other switching methods.
  • Provides 4 USB 3.2 device ports for connecting conference equipment, such as cameras and speakerphone.
  • Provides one balanced audio out port for connecting audio equipment, supports audio de-embedding, UAC, and Dante.
  • Provides 100m HDBT 3.0 output for video and USB extension applications in medium and large conference rooms.
  • Provides RS232, GPIO, RELAY, and OCS Sensor ports to connect various control and controlled devices.
  • One USB charge-only port is connected to the conference table to provide a charging function for mobile phones.
  • Each input port provides an independent USB to Ethernet bridge, providing a 1G ethernet connection to the connected computer.
  • Provides two independent RJ-45 ports for ethernet switch or VLAN Setting.

Built in Dante for Seamless integration

Take command with Dante Controller. Fully controllable through intuitive and standard platform, allowing you to easily manage and integrate Ceiling Microphone from leading manufacturer. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.

Tech Specification

Model DUCS-0402PD

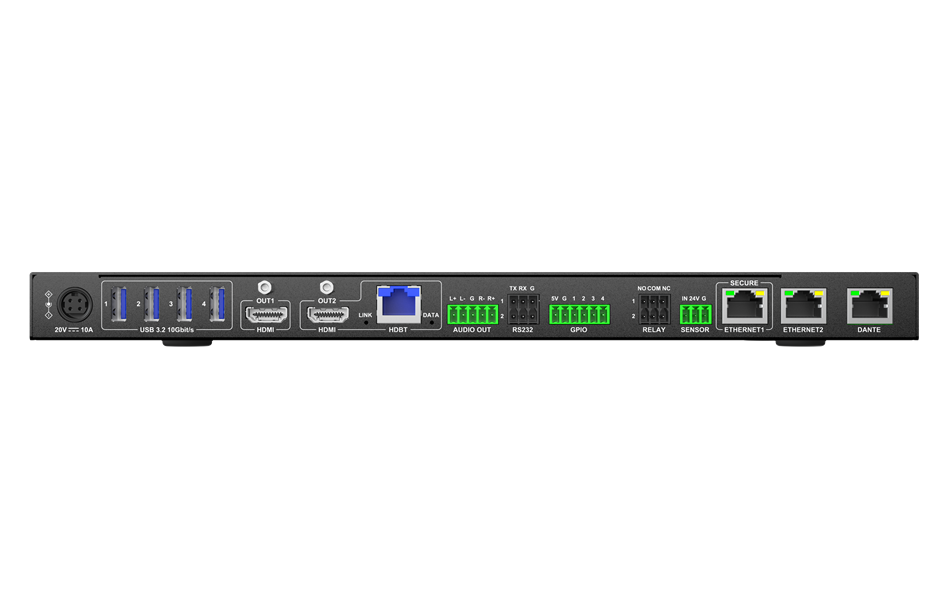

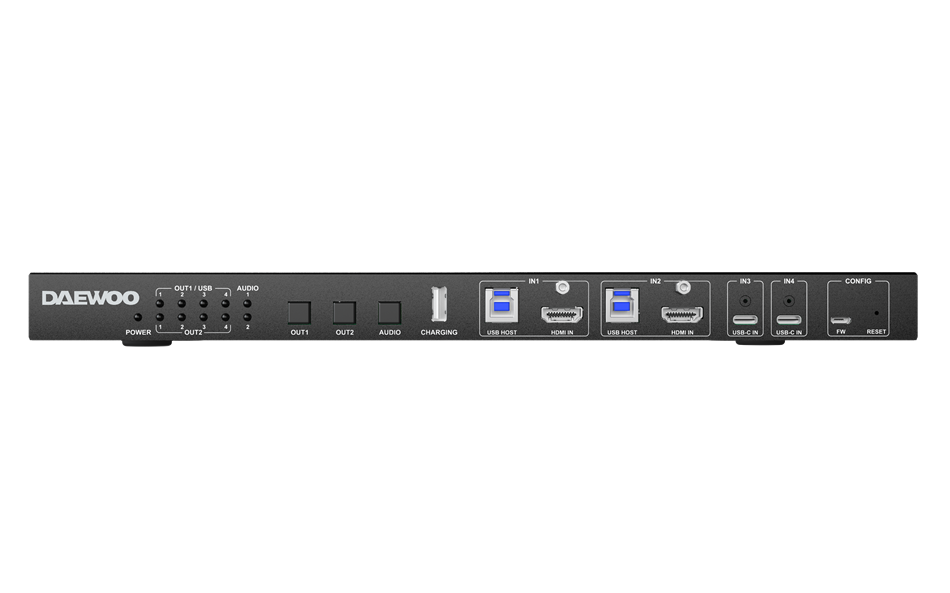

Input / Output Ports  2 x HDMI IN, 2 x USB-C IN, 2 x HDMI OUT, 1 x HDBT, 2 x USB HOST (USB Type-B), 1 x AUDIO OUT (3.5mm, 5-pin phoenix connector), 4 x USB DEVICE (USB Type-A), 2 x RS232, 1 x GPIO (3.5mm, 6-pin phoenix connector), 2 x RELAY, 1 x SENSOR, 2 x ETHERNET (RJ45), 1 x DANTE (RJ45), 1 x DC 20V
Input/Output Signal Type Supports HDMI 2.0 standard, up to 4K@60Hz 4:4:4 8bit or 4K@60Hz 4:2:2 12bit. Supports HDCP 2.2/1.4.
USB Host Input : 1 & 2 Supports USB 3.2 Gen 2x1 standard, up to 10Gbit/s
USB-C Input : 3 & 4 USB-C IN 3:
USB-C supports USB 3.2 Gen 2x1 standard, and supports:
  • Video: DP alt mode, SST only, up to 4K@60Hz.
  • USB data: Up to 10Gbit/s.
  • Charging: 60W.
USB-C IN 4:
USB-C supports USB 3.2 Gen 2x1 standard, and supports:
  • Video: DP alt mode, MST dual output, up to 4K@60Hz.
  • USB data: Up to 10Gbit/s.
  • Charging: 60W
USB Device Port Maximum supports USB 3.2 Gen 2x1 standard, up to 10Gbit/s.
5V/1.5A output per port.
Input/Output Resolution Supported

VESA: 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1200, 2048 x 1152, 2560 x 1440, 3440 x 1440

CTA: 1280x720P, 1920x1080P, 3840x2160P, 4096x2160P
HDR All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision
Audio Format USB-C IN/HDMI IN/ HDMI OUT: Up to 7.1ch, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X. Audio de-embedding: Stereo only. Dante: Stereo only.
Ethernet 1000M/100M adaptive network
Maximum Data Rate USB-C IN: 10Gbit/s
HDMI: 18Gbps
USB 3.2: 10Gbit/s
Control Method Front Panel Buttons, RS232, LAN (Telnet &Web UI)
Operating Temperature  0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection Human-body Model:
±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Power Supply DC 20V, 10A
Power Consumption (Max) Without USB and Charging: 13.1W
With USB + Charging: 155.6W
Dimension
(W x H x D)		 325mm x 25mm x 180.2mm /
12.80” x 0.98” x 7.09”
Weight 1.45kg/3.20lbs
