DCS-CT6

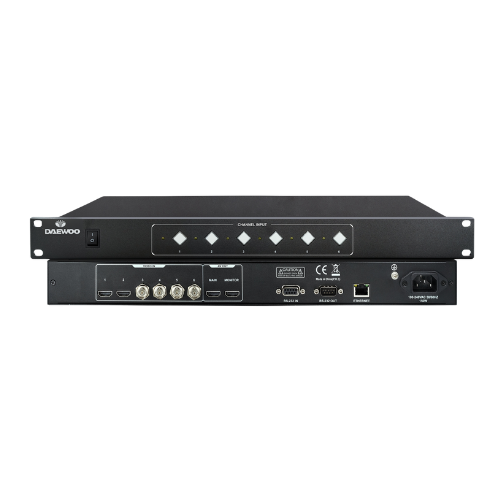

#6 Camera Auto tracking processor, 2x HDMI and 4xSDI, HD

DCS-CT6 a auto-tracking camera controller, can support both traditional preset position camera tracking as well as new infrared located tracking function.

It has a built-in 6*1 matrix switcher to process different signals and with the function of image freezing. Besides, it will manage several cameras at the same time.

Enquiry

Features

FEATURES

  • 2 HDMI+ 4 HD/3G SDI input, 1+1 HDMI output
  • 6x1+1 seamless scaler switcher, maximum supported output resolution is 1080P 60Hz
  • Seamless switching, no jitter, no blank screen
  • Adjustable image freezing function
  • Web control function

FUNCTIONS

  • Turn on/off the channel number indicators
  • 6x1 seamless scaler switcher, maximum supported output resolution is 1080P@60Hz
  • Seamless switching, no jitter, no blank screen
  • Adjustable image freezing function (freezing time from 1 to 6 seconds, freezing time cannot be less than 0.5 second or freezing function would be turned off)
  • Ethernet port to work with central controller or CLEACON series or CLASSIC-D series conference main unit for camera auto-tracking function

Tech Specification

Model DCS-CT6
Power DC 12V 3A
Buttons Soft-touch silicone buttons
Power Consumption  0.6W max
Operating Humidity 20% to 80% (non-condensing)
Display 128×32 LCD
Signal format/ Input(s) SDIx4 | HDMIx2
Pixel bandwidth 165MHz
Output Connector HDMI-A & Mirror VGA
Dimensions (mm) 483L x 260W x43.6D
Weight 3kg

Compatible

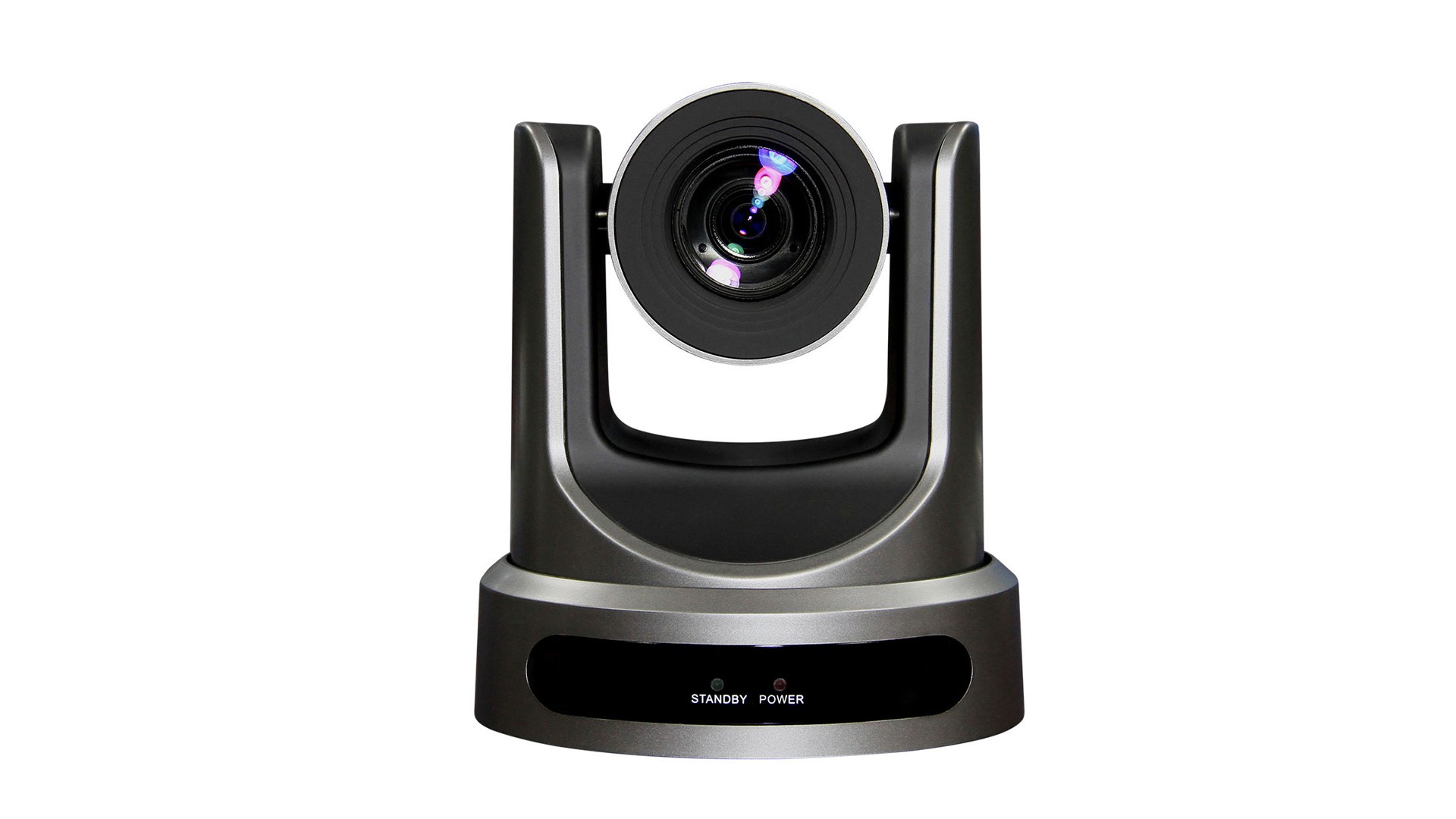

DCS-12X

12x optical zoom, 4K resolution

DCS-CTR2

2 Camera Auto Tracking Processor|2x HDMI IN |with 1TB HDD|HD Conference recorder
