DCS-CTR4

#4 Camera Auto tracking processor, 4x HDMI IN with 1TB HDD Conference recorder, HD

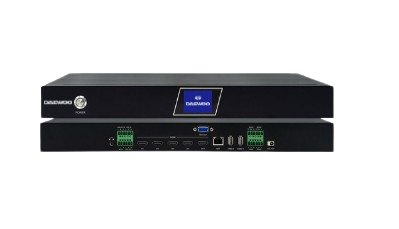

DCS-CTR4 advanced design and innovative features, the Professional HDMI Camera Switcher and Recorder is the better tool for professionals looking to capture and broadcast high-quality video content.

Features

FEATURES

  • Compact portable equipment, integrated high-definition video, audio, VGA, USB and other input and output interfaces.
  • Support access HD and SD signals, automatic identification signal combined layout pattern of their choice, can be very convenient for video, audio and computer screen simultaneously recording signals and local preview playback.
  • With 2-inch LCD screen, it can display recording and broadcasting status, channel status, network information, storage space and logo, etc.
  • Recording and generating common MP4 video files.
  • You can use PC management software, website or control system to make the configuration.
  • HDMI, VGA dual output design. HDMI output video conference screen, VGA output directed interface.

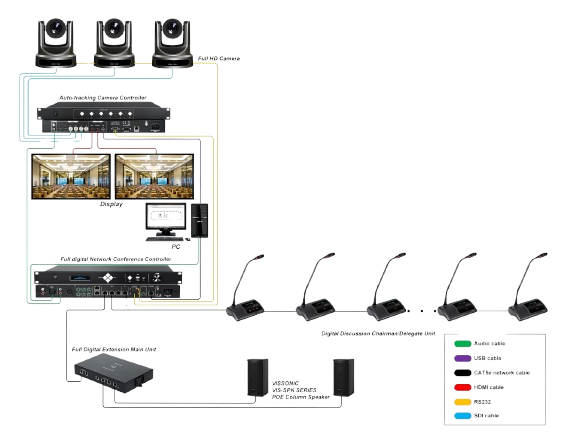

  • Working with conference controller DCS 2000 to get the camera auto-tracking and recording system.
  • Live broadcast under LAN or Ethernet.
  • Stream pushing has the main and sub streaming.

Tech Specification

Model DCS-CTR4
Power supply DC 12V 3A, adapter
Chassis Specifications 1U
Size 482 (L) × 270 (W) × 45 (H) mm
Weight 2kg
