DWXT40B20R-L

DCS-MDA

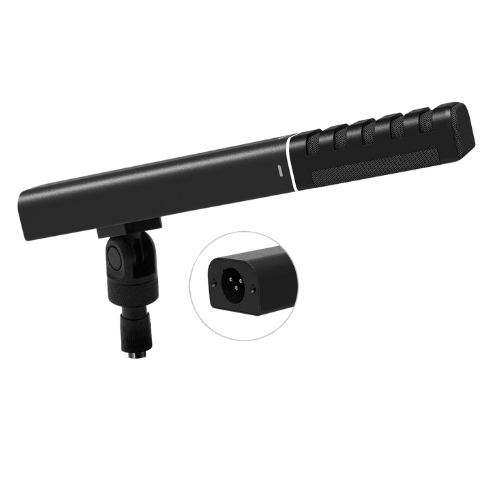

Short Square Shape MIC, with Digital and Analog outputs, Long distance voice pickup

DCS-MDA ,Sleek design with 80cm voice pickup, 4-direction angle adjustment, and dual (digital + analog) output for reliable performance and backup. Designed for high quality sound reproduction in venues such as boardrooms, conference rooms, courtrooms and other such venues.The effective sound reception angle of 90° can prevent interference from adjacent microphones and suppress howling.

Features

FEATURES

  • Long distance voice pickup up to 80cm.
  • Short Square Shape with modern design, low profile in front of speaking person.
  • Digital and analog two outputs as back up, one faulty audio line won’t affect the audio transmission.
  • 4-direction angle adjustable, 90° from left to right. 120° from up to down.
  • Mic ON/OFF Light indicators on both sides.

Tech Specification

Model DCS-MDA
Directivity Cardioid
Sensitivity -37dB+/-3dB@1KHz (0dB=1V/Pa)
Frequency response 60Hz~17KHz
Mic Capsule 2
Input impedance 200 Ohms
The maximum sound pressure 125dB at 1KHz 1% T.H.D
Power supply 9-48V Phantom Power
External interface 6-pin/XLR
Size 36*24*216 (mm) WxHxL
Weight 180g
Color Matte black
