DCS-INT-S

Simultaneous Interpretation Management Software Module

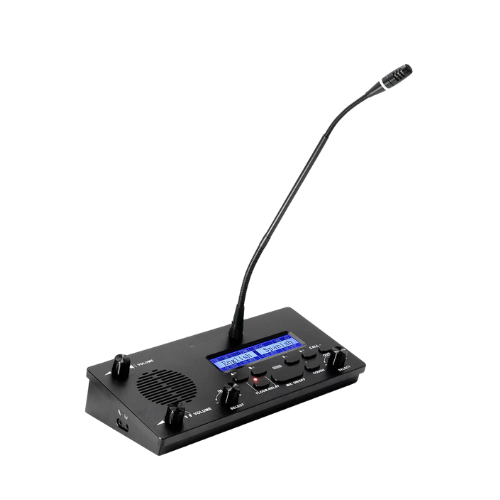

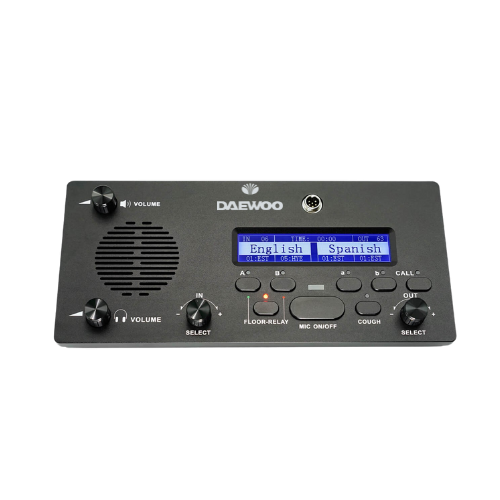

DCS-INT-S is a translation console with up to 64 channels,transmitting power,audio,and control data via a single Cat5e cable.Its digital design minimizes background noise,distortion,and cross talk.Featuring a user-centric designand compliant with ISO standards,it includes a 6.8"TFT LCD screen,built-in 64 channel selectors and speakers,and detachable microphone and headphone/microphone jack assemblies,meeting the translation needs of multilingual
venues.

Enquiry

Features

FEATHURES

  •      Accommodates up to 64 interpretation channels (incl. floor channel)
  •      Digital audio technology, built-in high-speed DSP processing.
  •      Supporting 48 kHz audio sampling rate, 30 Hz to 20 kHz frequency response on all 64 channels
  •      Anti-interference by any RF signal with metal housing design.
  •      Hot plug and play, Removable microphone design
  •      The volume of Loudspeaker and earphone jack support separated adjustment

FUNCTIONS

  •      Direct and relay interpretation available
  •      Hearing protection direct and relay interpretation available
  •      Interpreter unit can be set as operation unit and all interpreter units support Internal communication with operator unit
  •      Language and system configuration from the interpreter desk's configuration menu
  •      Short message and tea service function
  •      COUGH key to mute the MIC to avoid the unnecessary sound to the output
  •      Two Interpreter dual user
  •      The speaker and the headset's volume should be regulated alone. If all microphones in the same booth are off, the loudspeaker will play floor language or interpretation channel
  •      Support the headset microphone and Pluggable gooseneck microphone.
  •      Channel interlock function permits only one microphone on a channel to be activated at any time, ensuring the uniqueness of language channels
  •      Two necessary modes within one interpreter booth: Interlock and Override
  •      A-B pre-select input key to quickly select Input channel
  •      The timing function for indicating the interpretation time.



Tech Specification

Model DCS-INT-S
Power  DC48V from main unit or adaptor
Frequency response 20Hz~20KHz
Power consumption 3W
Input impedance  2.2kOhm
Display  320x64 dot
Dimension h x w x d (mm)  280x128x55
Earphone load   8ohm
Sensitivity -46dBV/pa
Transducer   Electret-condenser
 Weight .1.5kg
Directivity 0°/180° 20 dB(1 kHz)
