DWXT40B20R-L

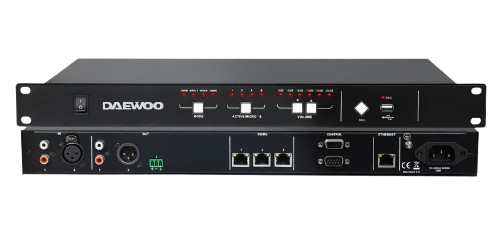

DCS-1000

Digital Networked Conference Processor, Support Wired Conferencing units

The system uses digital network technology for signal transmission and processing. A single CAT5e cable can transmit up to 64 audio channels and other signals. Each microphone unit has independent audio and ID output and integrates with voice recognition for role-based sound separation. It provides high-quality, lossless audio with a 48kHz sampling rate and 20Hz to 20kHz frequency response, supports discussion, and voting functionality.

Enquiry

Features

FEATURES

  • The "Daisy-Chain Network" ensures the system works even with changes or malfunctions in units. Microphone sensitivity and an 8-band equalizer are independently adjustable.
  • The conference controller outputs a 16-band equalized EQ for sound field control with AGC, AFC, and auto-mix technology.
  • The system adjusts sound output by zones for clear pickup without feedback.
  • Echo cancellation, remote communication, USB recording, and advanced noise cancellation ensure clarity.
  • The system supports date and time management and countdown speech.
  • An optional DANTE output module integrates with other DANTE devices.
  • The system can drive up to 16 PoE speakers through an extension unit, with 2x120W PoE speaker support.

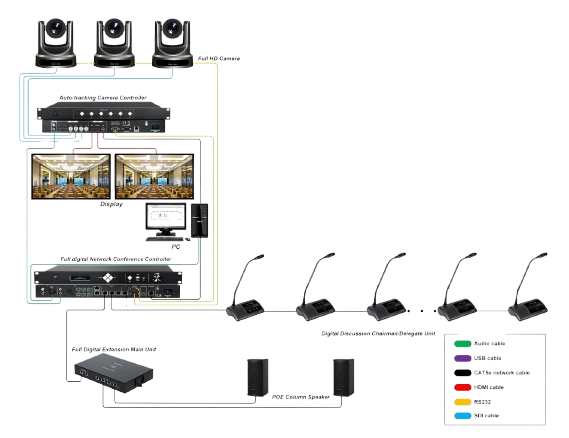

FUNCTIONS

  • The system adheres to international standards for conference equipment.
  • Its "Daisy Chain" design ensures each unit is assigned a unique identifier, preventing any conflicts.
  • Only wired discussion units can be connected to the DCS-1000 main controller, allowing quick and easy addition of participants for seamless meeting management.
  • The system provides 2-channel audio input through XLR or RCA connectors, supporting both local audio and remote video conferencing inputs.
  • It offers a maximum of 8-channel audio output via XLR, RCA, or Phoenix connectors, suitable for simultaneous interpretation or partitioned output.
  • The system allows for additional microphone connections through an audio input module, enabling the use of both condenser and dynamic microphones for expanded user options.
  • It includes a built-in multi-way internal communication feature. Communication between the controller and PC is facilitated via TCP/IP.
  • RS232 central control enables the management of microphone switching, priority, volume, and other operational parameters, RS232 or RS485 interfaces enable the integration of PELCO/VISCA protocol for camera auto-tracking.

Tech Specification

Model No. DCS-1000
Power 100V / 240V AC@50/60Hz
Static power consumption 12W
Maximum power consumption 150W
Unit power supply POE48VDC
RS-232 control 1x9 pin sub female socket 1x9 pin sub-D male socket
Ethernet control RJ45 connect computer control
Frequency Response 20Hz ~ 20KHz
THD 0.05%
Channel Crosstalk 85dB
Noise ratio (S / N) 96dBA
Dynamic Range 94dB
Dimensions (mm) 481L x 265W x46H
Weight 3kg

Compatible

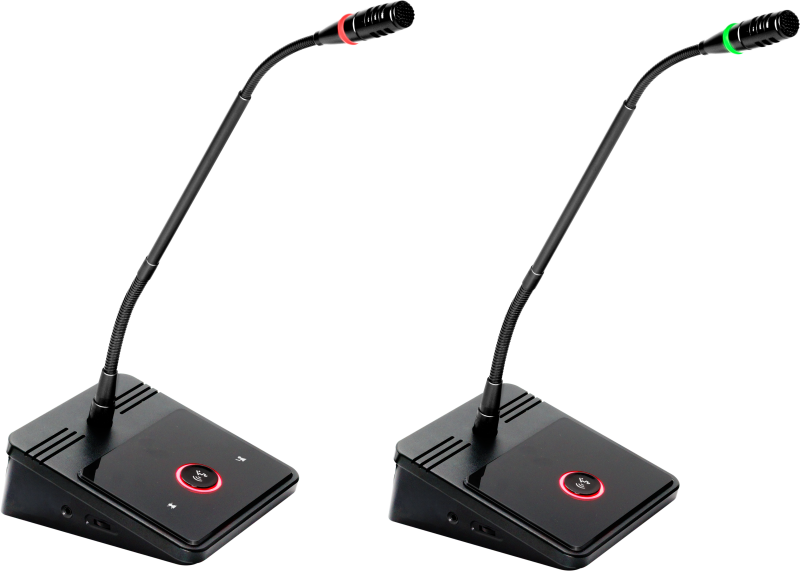

DCS-DEC | DCS-DED

Digital Wired Discussion Chairman | Delegate Conferencing Unit(s)

DCS-DFC | DCS-DFD

Digital Wired Flush Mount Discussion Chairman | Delegate Unit

DCS-DOC | DCS-DOD

Digital Wired Discussion Chairman | Delegate Unit(s) with button, Internal loudspeaker
