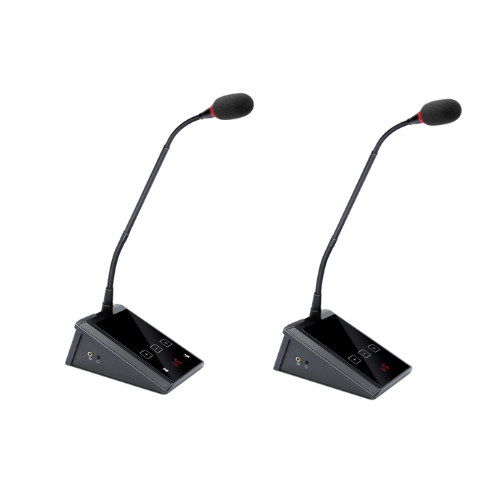

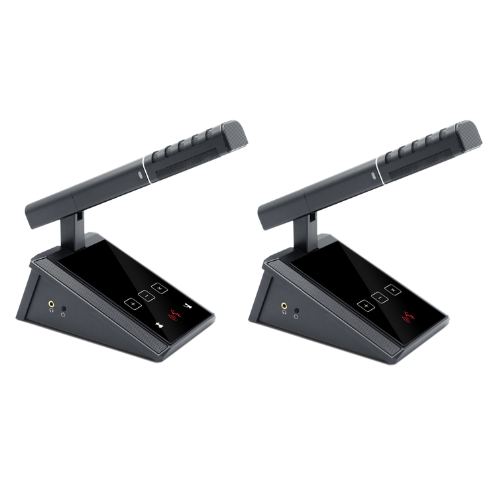

DCS-DWVC | DCS-DWVD

Digital Wireless Chairman | Delegate Voting Unit (MIC not included)

DCS-DWVC|DWVD is the wireless conference system unit combines advanced technology with user-friendly design, offering effortless setup and maximum efficiency for modern meetings. Powered by standard Wi-Fi technology, it seamlessly integrates with existing networks, ensuring zero interference by selecting from multiple frequency points. Its elegant design with anti-scratch and dustproof glass, maintaining a flawless appearance even after extensive use.

Enquiry

Features

FEATHURES

  • Detachable microphone connection base, one battery compartment and one TYPE-C charging port.
  • Standard Wi-Fi supports 5GHz channel, ensuring coexistence with other networks;
  • Dual 3.5mm audio interfaces enable headphone or recording output;
  • Built-in 2W fidelity speakers provide sound amplification for various venue sizes;
  • Digital signal processing prevents RF interference from devices like mobile phones;
  • Units can be configured as chairman or representative via software, with up to 32 VIP representative units allowed, operating freely within an 8-microphone limit;
  • Microphone features a dual-color LED ring: red indicates speaking status, green shows a request to speak;
  • Power and signal strength check button, with dual-color indicator for battery and signal strength;
  • Equipped with power on/off button, microphone on/off button;
  • Chairman unit includes a priority button and a request approval button.

FUNCTIONS

  •  Full digital transmission and processing technology, uncompressed audio transmission, using professional microphones to achieve perfect sound quality from 20Hz to 20KHz.
  • 128-bit digital encryption technology, with WPA2 secure connection, MAC address filtering, and hidden SSL security to prevent eavesdropping and unauthorized access;
  • High-fidelity sound quality, the wireless unit supports up to 6 microphones being turned on at the same time;
  • The system also provides RS485, RS232, and IP to send PELCO and VISCA protocols. When used with a camera and video switcher, it has an automatic camera tracking function.
  • Built-in fidelity speaker, after turning on the microphone, the speaker will automatically mute to prevent howling;
    When separated from the computer, the conference system can also achieve:
  • Speaker number limit function: You can set representative speaking units to be turned on at the same time (the number is 1/2/4/6 units). supporting 2 chairmen or VIPs without restrictions;                                   Equipped with following speaking modes:
  •  "OPEN" open mode, "VOICE" voice control mode, "FIFO" first in first out mode, "Apply" application mode
  • Chairman unit priority supports two modes: close all and temporary mute:
  • The chairman unit has an approve application to speak button;
  • Type-C charging and can speak continuously for 10 hours.

Tech Specification

Model DCS-DWVC | DCS-DWVD
Power 100V / 240V AC
power consumption 12W
Maximum power consumption 150W
Frequency Response    20Hz ~ 20KHz
Noise ratio 96dBA
Total harmonic distortion  0.05%
Channel Crosstalk 85dB
Dynamic range 94dB
Ethernet control RJ45 connected to PC
Dimensions (mm 483L x 260W x43.6H
Weight 3kg
