DCS-AP5

5G wifi access point

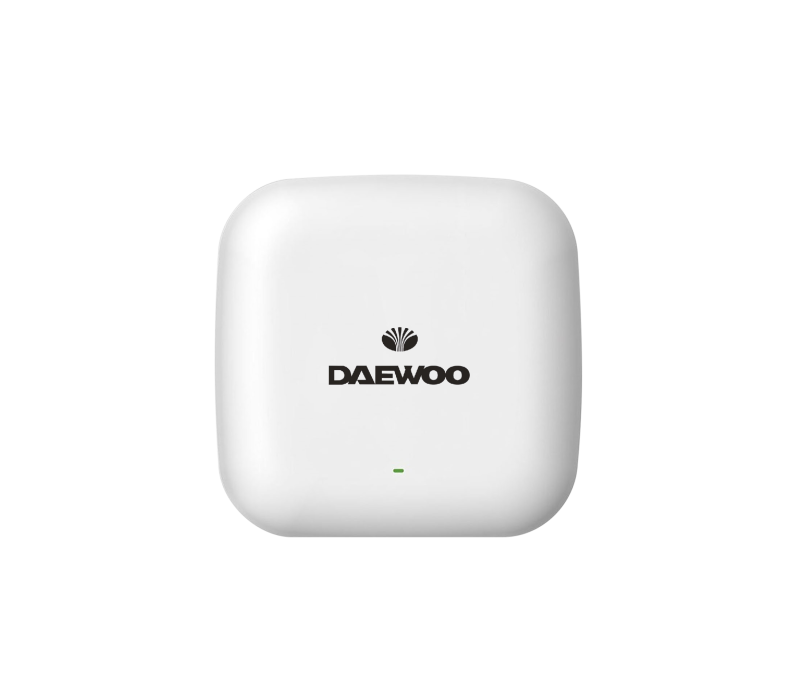

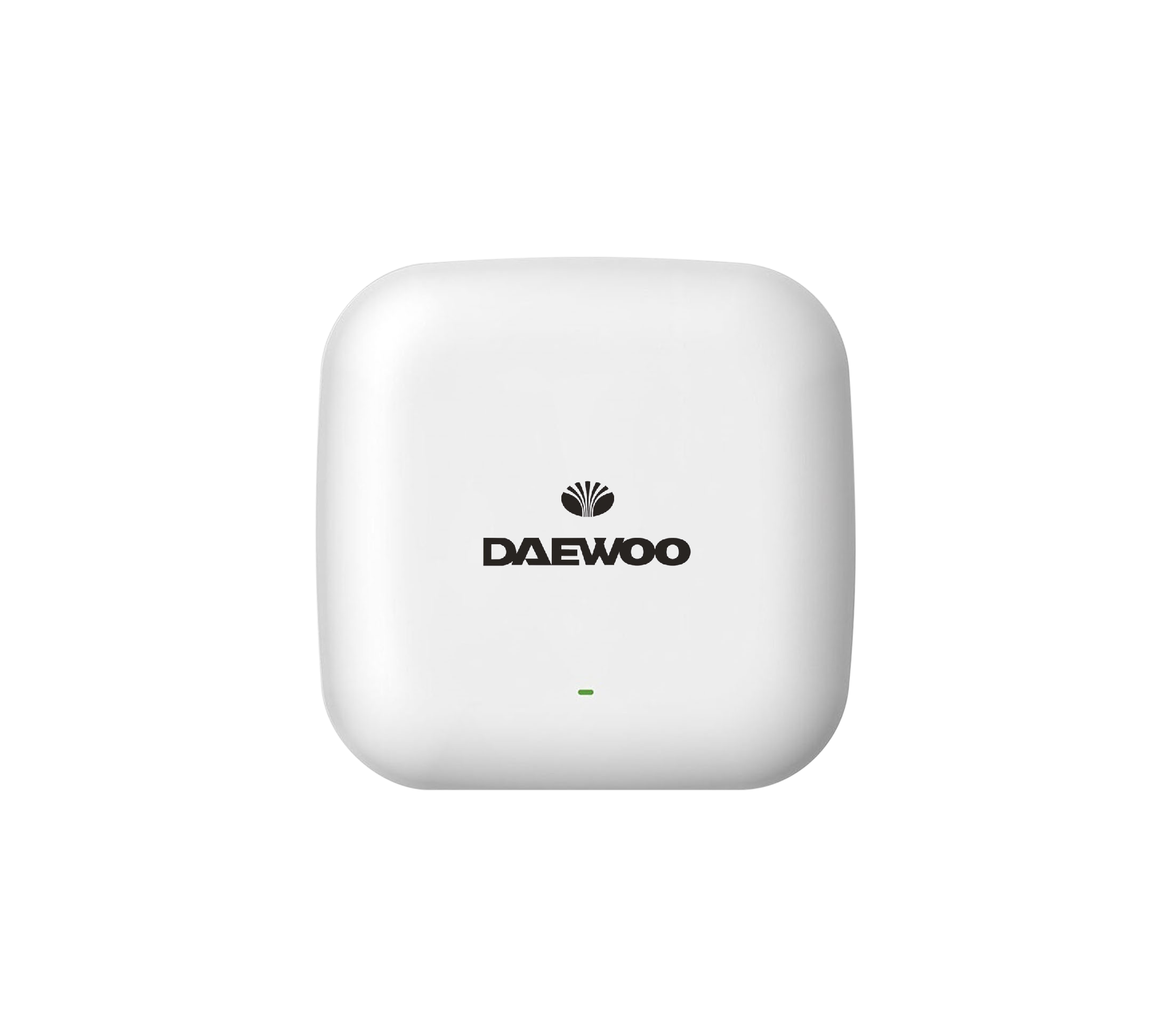

The DCS-AP5 5GHz Dual Band WiFi Access Point offers high-speed wireless connectivity with a 1750Mbps transmission rate, powered by a 3-core CPU, 256MB DDR memory, and six hidden antennas for wider coverage. Its dual-band support ensures smooth streaming, gaming, and conferencing, while the sleek white design and flexible mounting options make it ideal for homes, offices, and commercial spaces.



Enquiry

Features

FEATHURES

  •       Connect with the Wi-fi conference processor DCS-2000W, or with the switch to extend more conference AP in the same system.
  •        Typical coverage range 30m.
  •        Each AP can connect up to 50 conference units,
  •         Install on ceiling, wall or with stand rack mount.
  •         128 bits AES digital encryption technology, with WAP2 secure connection, MAC address filtering, SSID-hiding to prevent wiretapping and unauthorized access from delegate unit.



FUNCTIONS

·         LED indicator for signal/power.

·         5GHz dual band communication

·         LAN support POE power supply

·         RJ45 for LAN connection.

Tech Specification

Model DCS-AP5
Power 100V / 240V AC
power consumption 12W
Maximum power consumption 150W
Frequency Response    20Hz ~ 20KHz
Noise ratio 96dBA
Total harmonic distortion  0.05%
Channel Crosstalk 85dB
Dynamic range 94dB
Ethernet control RJ45 connected to PC
Dimensions (mm 483L x 260W x43.6H
Weight 3kg

Compatible

DCS-2000W

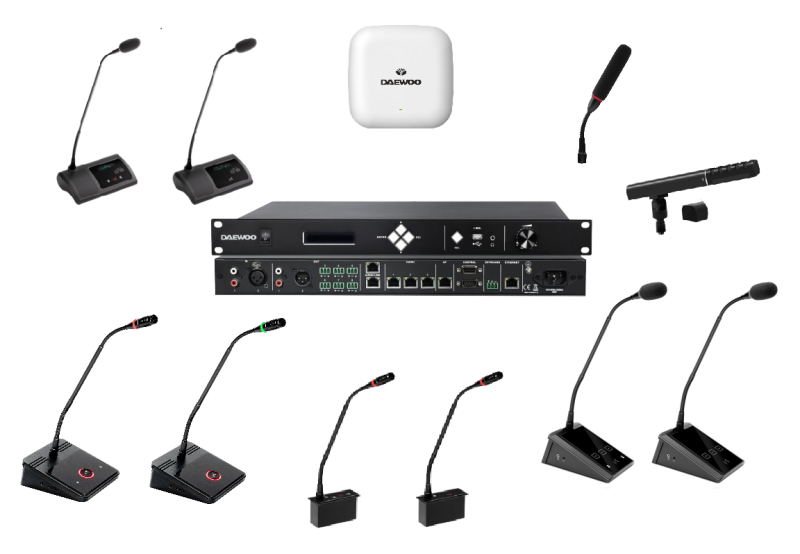

Digital Networked DSP Conference Processor, Support Wired & Wireless Conferencing units Simultaneously
