FUNCTIONS

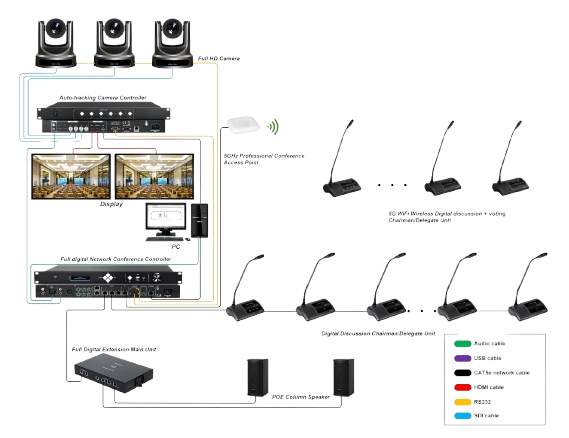

- The system connects to a digital extension main unit, supporting up to 5,200 discussion units.
- It utilizes a Daisy-Chain design, ensuring each unit has a unique ID to prevent conflicts.

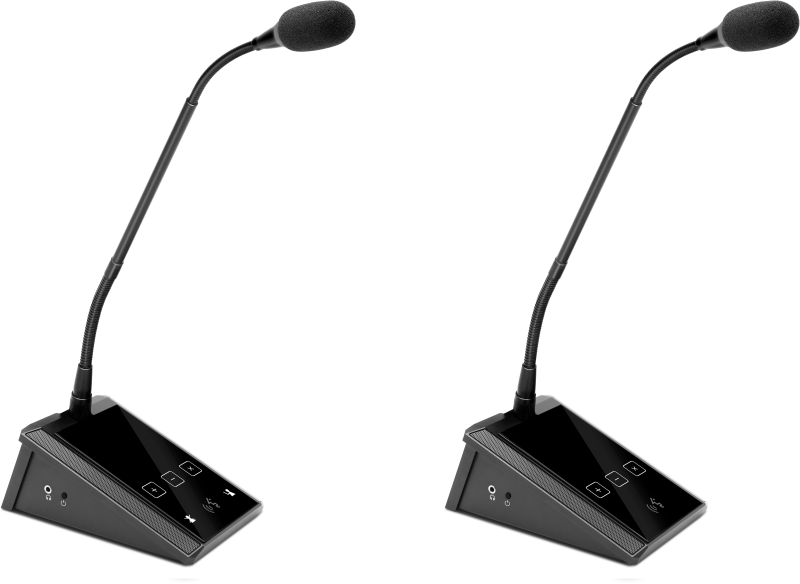

- Both wired and wireless discussion units can connect to the controller, enabling easy participant addition.
- It supports up to 8 wireless microphones simultaneously, utilizing interference avoidance technology that complies with IEEE 802.11n standards for 5GHz Wi-Fi, enhancing anti-interference capabilities.

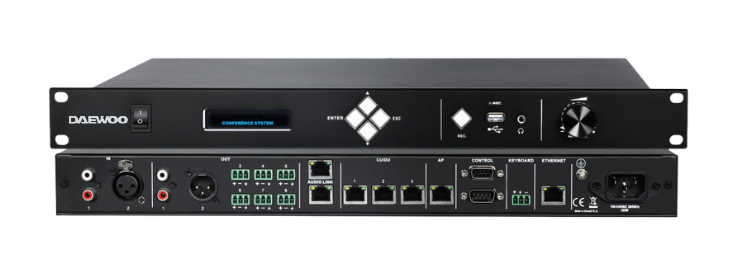

- The system provides 2 audio input channels (XLR or RCA) for local or remote audio sources and up to 8 audio output channels (XLR, RCA, or modular connectors) for translation or zone outputs.
- An additional input module allows connection of various microphone types, including condenser and dynamic options.
- The built-in multi-way communication feature supports seamless internal interaction.
- TCP/IP connectivity links the controller with a PC, while RS232 central control manages microphone switches, volume control, and priority settings.
- RS232 or RS485 interfaces enable camera tracking through compatible protocols.
- The system supports hot plug-and-play functionality and automatic recovery. It operates within a voltage range of 100V to 240VAC.
The controller allows:
- Limiting active microphones: 1, 2, 4, or 6 units, with support for up to 32 wired microphones in full-on mode.
- Discussion modes:
"OPEN" allows free speech, limited by active units;
"VOICE" activates microphones via sound detection;
"OVERRIDE" follows first-come, first-served;
"APPLY" requires speech requests;
"PTT" (Press-to-Speak) is optional;
"ALL" enables simultaneous speech (optional). This version avoids overlap with other products.
