DWXT40B20R-L

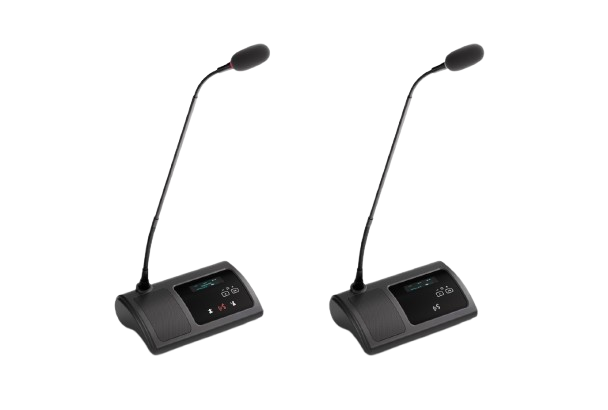

DCS-DWC | DCS-DWD

Digital Wireless Chairman | Delegate Conferencing Unit

DCS-DWC | DWD is the wireless conference system unit combines advanced technology with user-friendly design, offering effortless setup and maximum efficiency for modern meetings. Powered by standard Wi-Fi technology, it seamlessly integrates with existing networks, ensuring zero interference by selecting from multiple frequency points. Its elegant design with anti-scratch and dustproof glass, maintaining a flawless appearance even after extensive use.

Features

FEATURES

  • Detachable microphone connection base, one battery compartment and one TYPE-C charging port.
  • Standard Wi-Fi supports 5GHz channel, ensuring coexistence with other networks;
  • Dual 3.5mm audio interfaces enable headphone or recording output;
  • Digital signal processing prevents RF interference from devices like mobile phones
  •  Units can be configured as chairman or representative via software, with up to 32 VIP representative units allowed, operating freely within an 8-microphone limit;
  • Microphone features a dual-color LED ring, red indicates speaking status, green shows a request to speak;
  • Power and signal strength check button, with dual-color indicator for battery and signal strength;
  • Equipped with power on/off  button, microphone on/off button;
  • Chairman unit includes a priority button and a request approval button.

FUNCTIONS

• Full digital transmission and processing technology, uncompressed audio transmission, using professional microphones to achieve perfect sound quality from 20Hz to 20KHz.
• 128-bit digital encryption technology, with WPA2 secure connection, MAC address filtering, and hidden SSL security to prevent eavesdropping and unauthorized access;
• High-fidelity sound quality, the wireless unit supports up to 6 microphones being turned on at the same time;
• When used with a camera and video switcher, it has an automatic camera tracking function.
• Built-in fidelity speaker, after turning on the microphone, the speaker will automatically mute to prevent howling;
When separated from the computer, the conference system can also achieve:
• Speaker number limit function: You can set representative speaking units to be turned on at the same time (the number is 1/2/4/6 units). supporting 2 chairmen or VIPs without restrictions;
Equipped with following speaking modes:
• "OPEN" open mode, "VOICE" voice control mode, "FIFO" first in first out mode, "Apply" application mode
• Chairman unit priority supports two modes: close all and temporary mute:
•  The chairman unit has an approve application to speak button;
• Type-C charging and can speak continuously for 10 hours.



Tech Specification

Model DCS-DWC | DCS-DWD
Display OLED display 128 × 32
Button Operation Touch Interface
Maximum power consumption 2.0W
Frequency Response    20Hz ~ 20KHz
SNR 70dB
Sensitivity -46 dBV /Pa
Directivity 0 ° / 180 ° 20 dB (1 kHz)
Headphone Load 16Ω
Equivalent Noise 20dBA (SPL)
Input Impedance 2kΩ
Operating Temperature 0 ℃ to + 55 ℃
Main Material ABS
Dimensions LxWxH (mm)  195 × 120 × 60
Weight 1.1kg

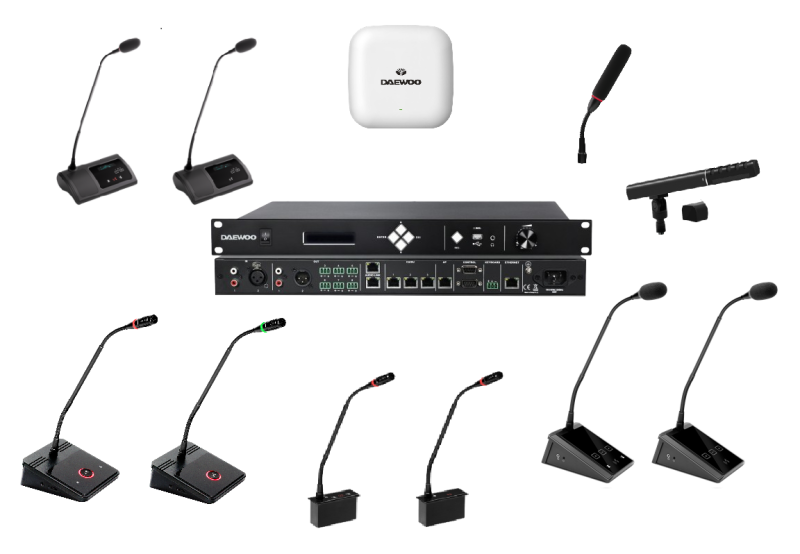

Compatible

DCS-AP5

5G wifi access point

Accessories

DCS-MDM

Short Square Shape MIC, with Long distance Voice Pickup

DCS-MDA

Short Square Shape MIC, with Digital and Analog outputs, Long distance voice pickup

DCS-M600

Pluggable Gooseneck Microphone 600mm

DCS-M485

Pluggable Gooseneck Microphone 485mm

DCS-M410

Pluggable Gooseneck Microphone 410mm

DCS-M330

Pluggable Gooseneck Microphone 330mm

DCS-M220

Pluggable Gooseneck Microphone 220mm

DCS-2000W

Digital Networked DSP Conference Processor, Support Wired & Wireless Conferencing units Simultaneously
